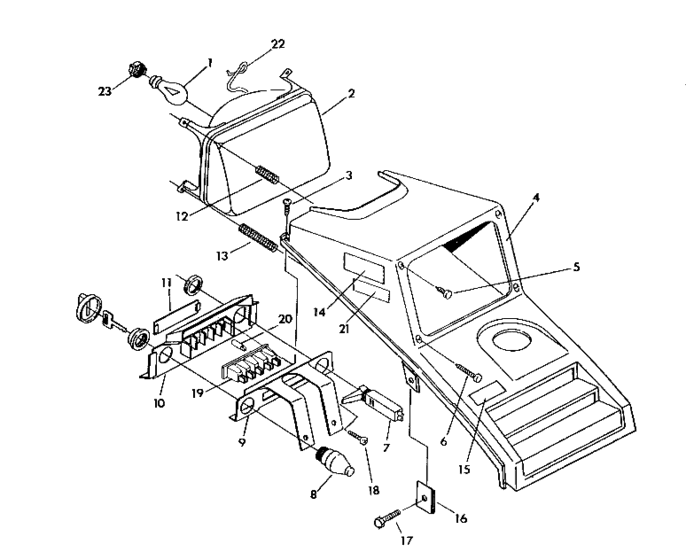

Headlight assembly (Trail Blazer / W927221) Diagram Polaris TRAIL BLAZER 250
- Model code
- W927221
- Year
- 1992
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4030028 Bulb, h/l |
4030028 |
US $28.93 |
||
|
2
|
2
4032038
Headlight asm,
|
4032038 |
— | ||
|
3
|
3
7512017 Screw10; |
7512017 |
US $2.45 |
||
|
4
|
4
5430973-157
Cover,oil-h/l,bon.blue
|
5430973-157 |
— | ||
|
5
|
5
4032003
Screw, adj.
10; |
4032003 |
— | ||
|
6
|
6
4032042 Screw,adjust,(atv)ATV;10; |
4032042 |
US $3.94 |
||
|
7
|
7
2200188 Kit-choke control |
2200188 |
US $24.61 |
||
|
7
|
7
7080371 Cable, choke |
7080371 |
US $86.68 |
||
|
8
|
8
4110102
Switch,ign.
MOD.; |
4110102 |
— | ||
| replacement | |||||
|
8
|
8
4110139
Switch,ignition,a,d,
MOD.; |
4110139 |
— | ||
|
9
|
9
5220965-067 Brkt, ign, panel |
5220965-067 |
US $18.76 |
||
|
10
|
10
5430995
Panel, ignition
|
5430995 |
— | ||
|
11
|
11
2652049
Lens asm,pilot light
|
2652049 |
— | ||
|
12
|
12
4032002 Spring-adj |
4032002 |
US $22.89 |
||
|
13
|
13
4032041
Spring,adj,
|
4032041 |
— | ||
|
14
|
14
7073443
Decal,`250`,pink
|
7073443 |
— | ||
|
15
|
15
7073024
Label, 'u,s,a,'
|
7073024 |
— | ||
|
16
|
16
7670060 Nut, speed10; |
7670060 |
US $1.49 |
||
|
17
|
17
7512282 Bolt, black(10)10; |
7512282 |
US $1.89 |
||
|
18
|
18
7511862 Screw10; |
7511862 |
US $3.75 |
||
|
19
|
19
4032037 Strip, socket |
4032037 |
US $33.50 |
||
|
20
|
20
4030042 Bulb |
4030042 |
US $4.34 |
||
|
21
|
21
2670134 Asm,,reflector,amber |
2670134 |
US $10.83 |
||
|
22
|
22
4032063 Retainer,h/l bulb |
4032063 |
US $10.01 |
||
|
23
|
23
4032066 Cover,socket,h/l, |
4032066 |
US $24.40 |
||
