Engine mounting (Trail Blazer W937221) Diagram Polaris TRAIL BLAZER 250

Model code
W937221
Year
1993
Sales region
General

Difficulties in parts search?

Parts list

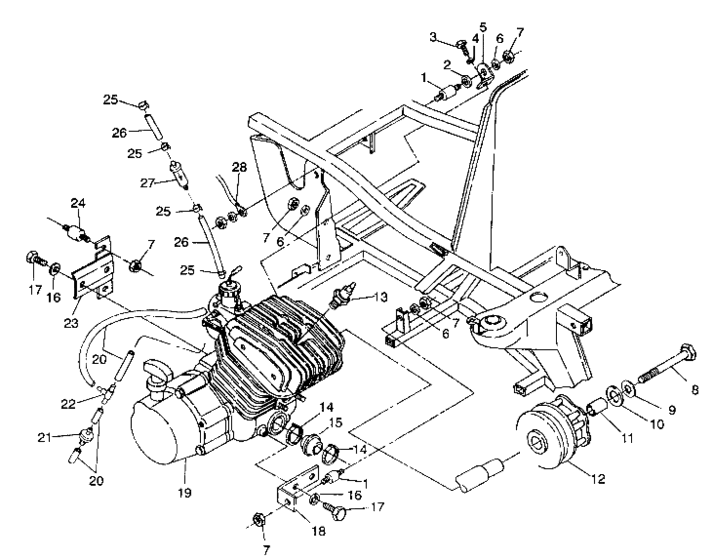

Engine mounting

Difficulties in parts search?

Engine mounting
Description OEM Part # Price
1
1
3110026
Mount, motor

3110026

2
2

5430802

Insulator,motor mt,

5430802

US $7.09

3
3

7515321

Bolt

10;

7515321

US $1.89

4
4

7552901

Washer,spring lock(10)

10;

7552901

US $39.40

5
5
5220471-067
Mount, eng,,top

5220471-067

6
6

7555801

Washer

10;

7555801

US $2.45

7
7

7542403

Nut lock(10)

10;

7542403

US $3.75

8
8

7512566

Bolt

10;

7512566

US $12.79

9
9

7575202

Washer lock

10;

7575202

US $6.56

10
10

5210748

Washer(10)

10;

5210748

US $5.25

11
11

5430261

Bushing

5430261

US $9.10

13
13

3070156

Plug,spark,ngk br8es(10)

10;

3070156

US $4.15

14
14

7080511

Clamp, narrow band

10;

7080511

US $1.75

15
15

5410421

Boot,clutch intake

5410421

US $9.85

16
16
7553001
Washer springlock

10;

7553001

replacement
16
16

7552603

Washer,spring lock(10)

10;

7552603

US $26.30

17
17

7512490

Screw

10;

7512490

US $3.75

18
18
5220881-067
Plate,fr,mtr,mt,

5220881-067

19
19
1211535
Eng.ec25pf-09

1211535

20
20
8360009
Line, vent

8360009

replacement
20
20

8360009-600

Line,fuel,1/8 id,600 cm,

8360009-600

US $27.39

21
21
7052047
Checkvalve,vent

7052047

replacement
21
21

7051011

Valve,check

7051011

US $9.15

22
22

7052005

Fitting, tee

7052005

US $1.77

23
23
5220757-067
Mount, rear

5220757-067

replacement
23
23

5241056-067

Mt,r,a/c(atv),blk,

5241056-067

US $50.42

24
24
3110028
Mount, engine

3110028

25
25

7080236

Clamp-hose

10;

7080236

US $2.45

26
26
8450003
Line, fuel

Cannot Purchase as Assembly; FT.;

8450003

27
27

2530009

Filter,small,in-line,(10)

10;

2530009

US $6.56

28
28
4010067
Cable,ground/eng,

4010067
