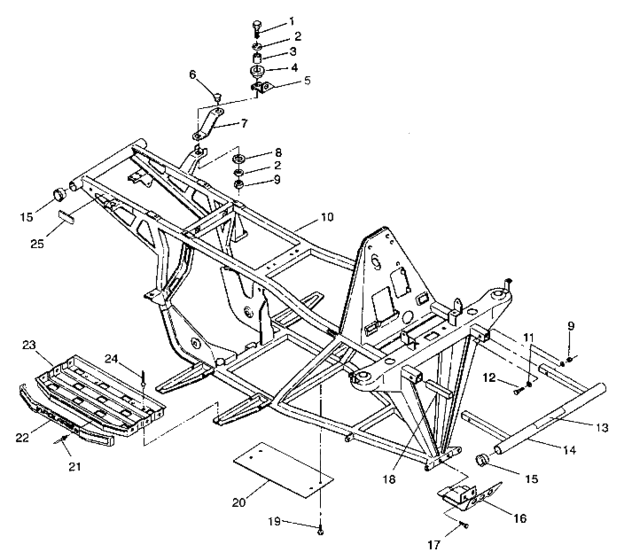

Frame assembly (Trail Blazer W937221) Diagram Polaris TRAIL BLAZER 250
- Model code
- W937221
- Year
- 1993
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515304 Screw-flanged10; |
7515304 |
US $3.75 |
||
|
2
|
2
7555716 Washer10; |
7555716 |
US $2.45 |
||
|
3
|
3
5010192 Bushing |
5010192 |
US $4.94 |
||
|
4
|
4
5410241
Dampener, vibration
|
5410241 |
— | ||
|
5
|
5
5220899-067
Brkt,lh support rack
|
5220899-067 |
— | ||
| replacement | |||||
|
5
|
5
5243468-067
Brkt,support rack,lh,blk
|
5243468-067 |
— | ||
|
5
|
5
5220901-067
Brkt,rh support rack
|
5220901-067 |
— | ||
| replacement | |||||
|
5
|
5
5243469-067
Brkt,support rack,rh,blk
|
5243469-067 |
— | ||
|
6
|
6
5410012 Plug,rubber-hole,,5dia10; |
5410012 |
US $10.36 |
||
| replacement | |||||
|
6
|
6
5411426
Bumper,rubber-hole,.5dia
10; |
5411426 |
— | ||
|
7
|
7
5220902-067 Support,r,fender |
5220902-067 |
US $36.61 |
||
|
8
|
8
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
9
|
9
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
10
|
10
1040270-067
Frame, square,
No Longer Available; ATV; |
1040270-067 |
— | ||
|
11
|
11
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
12
|
12
7512329 Bolt10; |
7512329 |
US $4.59 |
||
|
13
|
13
7073455
Decal, f.susp.
|
7073455 |
— | ||
|
14
|
14
2670124-067
Bumper, front
|
2670124-067 |
— | ||
|
15
|
15
5410794
Plug, bumper cap
10; |
5410794 |
— | ||
| replacement | |||||
|
15
|
15
5432047 Plug,endcap10; |
5432047 |
US $6.11 |
||
|
16
|
16
2670126-067
Brkt,low,f,bumper
|
2670126-067 |
— | ||
|
17
|
17
7512399 Screw10; |
7512399 |
US $3.94 |
||
|
18
|
18
5810467 Plug, frameFoam; |
5810467 |
US $6.60 |
||
|
19
|
19
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
20
|
20
5211257-067
Guard, rock
|
5211257-067 |
— | ||
|
21
|
21
7661825 Rivet,(50)50; |
7661825 |
US $0.79 |
||
|
22
|
22
5431484
Trim, footrest
|
5431484 |
— | ||
|
23
|
23
1040274
Footpad,lh,
ATV; |
1040274 |
— | ||
| replacement | |||||
|
23
|
23
1040274-117 Footpad,lh,silverATV; |
1040274-117 |
US $101.45 |
||
|
24
|
24
7661620
Rivet
MONOBOLT; |
7661620 |
— | ||
| replacement | |||||
|
24
|
24
7661637 Rivet,interlock,z(50) *MONOBOLT; |
7661637 |
US $0.79 |
||
|
25
|
25
2670133 Reflector asm,red |
2670133 |
US $9.45 |
||
