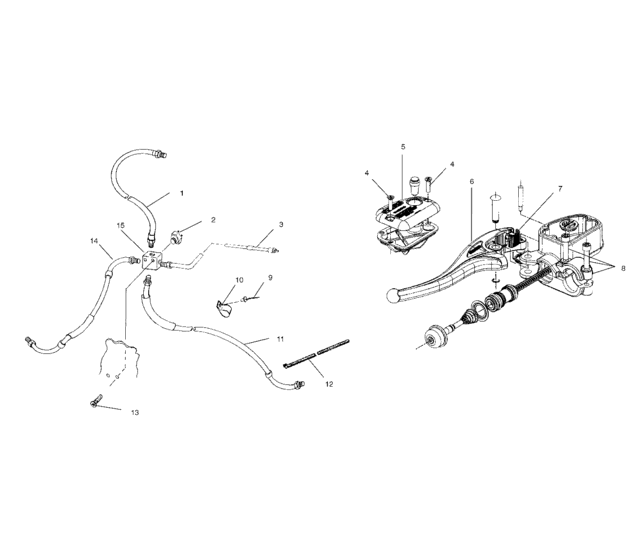

Controls (MASTER CYLINDER/BRAKE LINE) Diagram Polaris TRAIL BLAZER 250 FREEDOM
- Model code
- A02BA25CB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1910501 Line-brake,pod,ss,pt |
1910501 |
US $88.64 |
||
|
2
|
2
4110164 Switch,stoplight |
4110164 |
US $34.49 |
||
|
3
|
3
1910504
Line-brake,jb to rear,ss,cds
|
1910504 |
— | ||
|
4
|
4
7517899 Screw,8-32x5/8,torx flhd ms-m(1 |
7517899 |
US $0.79 |
||
|
5
|
5
2201834
Kit, master cylinder cap
Incl. Cap, Screws, Sight, Gasket;Incl. Cap, Screws, Sight, Gasket; |
2201834 |
— | ||
|
6
|
6
2201835 Kit,master cylinder leverIncl. Pin, Lever, Clip;Incl. Pin, Lever, Clip; |
2201835 |
US $56.14 |
||
|
7
|
7
2201836 Kit,master cylinder park brakeIncl. Lever, Spring;Incl. Lever, Spring; |
2201836 |
US $40.58 |
||
|
8
|
8
2201833 Kit,master cylinder clampIncl. Clamp, Screws;Incl. Clamp, Screws; |
2201833 |
US $45.61 |
||
|
9
|
9
7621462 Rivet(50) |
7621462 |
US $1.89 |
||
|
10
|
10
7080539 Clamp,nylon,cable |
7080539 |
US $2.45 |
||
|
11
|
11
1910474 Line-brake,front lh,ss |
1910474 |
US $93.52 |
||
|
12
|
12
7080492 Cable tie,11 inch |
7080492 |
US $3.64 |
||
|
13
|
13
7512024 Screw |
7512024 |
US $2.45 |
||
|
14
|
14
1910475 Line-brake,front rh,ss |
1910475 |
US $93.52 |
||
|
15
|
15
7052292 Fitting,cross |
7052292 |
US $34.27 |
