Parts list

Difficulties in parts search?

	Description	OEM Part #	Price
1	1 2460939 Harness, main	2460939	—
2	2 7080138 Cable tie (10)	7080138	US $26.30
3	3 2200593 Kit,ckt,brkr,20 amp	2200593	US $45.69
4	4 2432038 Light, tail/brake If built before 2/04/02;	2432038	—
4	4 2410319 Asm-taillight,12v,series fil If built after 2/04/02;	2410319	US $76.81
5	5 7512088 Screw	7512088	US $2.98
6	6 4032085 Lens,stop&t/l,	4032085	US $24.43
7	7 4030043 Bulb	4030043	US $4.94
8	8 4032086 Gasket,t/l&stop/l	4032086	US $7.09
9	9 4032087 Backing,(stop&tail)	4032087	US $9.15
10	10 7670093 Clip, retainer(10)	7670093	US $3.75
11	11 7571602 Washer	7571602	US $2.45
12	12 7512027 Screw(10) *	7512027	US $19.60
13	13 5810290 Pad, battery	5810290	US $6.11
14	14 5431769 Cover,battery	5431769	US $13.20
15	15 2200361 Kit-battery bolt (short)	2200361	US $1.77
16	16 4010095 Cable,batt/eng,,blk,	4010095	—
17	17 7010032 Hook-battery strap(10)	7010032	US $26.30
18	18 5410424 Strap, battery holddown	5410424	—
19	19 5432077 Tube,vent	5432077	US $6.11
19	19 7080303 Clamp, poly	7080303	—
20	20 4140006 Battery	4140006	US $275.60
21	21 4010094 Cable,batt/solenoid,red	4010094	US $30.54
22	22 4010129 Cable,sol/start,dblboot	4010129	US $40.37
23	23 7541925 Nut, nylok 10-24 y	7541925	—
24	24 7512007 Bolt	7512007	US $2.45
25	25 4060208 Rectifier/regulator,lr39-1	4060208	—
26	26 7512024 Screw	7512024	US $2.45
27	27 4010186 Limiter-rpm,94 hz,lr491	4010186	US $101.45
28	28 7670109 Clip-routing	7670109	US $3.75

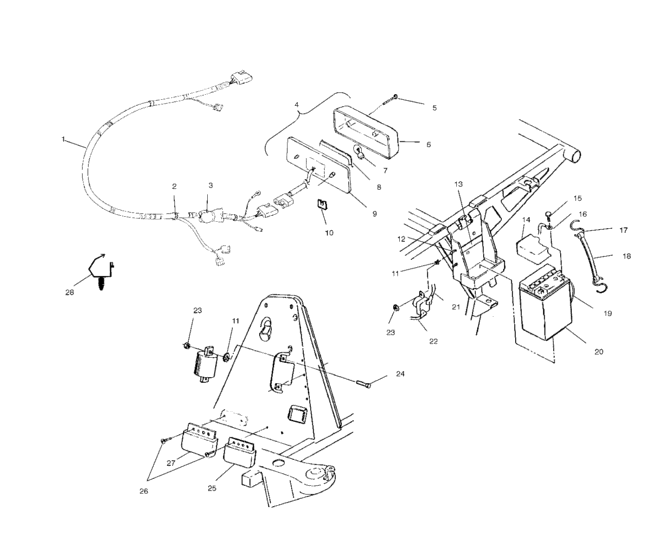

Electrical/taillight (A02BA25CA/CB/CD) Diagram Polaris TRAIL BLAZER 250 FREEDOM General 1561125-151543
