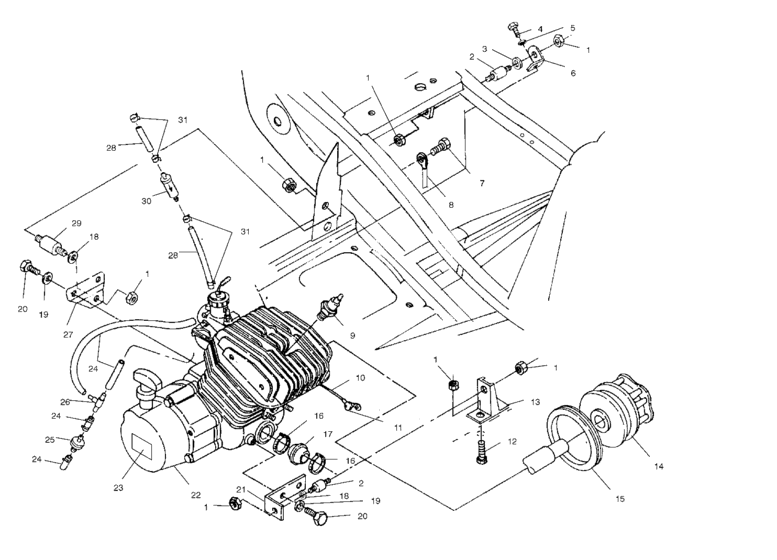

Engine mounting (A02BA25CA/CB/CD) Diagram Polaris TRAIL BLAZER 250 FREEDOM
- Model code
- A02BA25CB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7547108 Nut |
7547108 |
US $2.98 |
||
|
2
|
2
3110026
Mount, motor
|
3110026 |
— | ||
|
3
|
3
5430802 Insulator,motor mt, |
5430802 |
US $7.09 |
||
|
4
|
4
7512315 Bolt |
7512315 |
US $2.98 |
||
|
5
|
5
7552901 Washer,spring lock(10) |
7552901 |
US $39.40 |
||
|
6
|
6
5244119-067
Bracket, engine mount, top
|
5244119-067 |
— | ||
|
7
|
7
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
8
|
8
4010132 Cable,gnd-engine |
4010132 |
US $30.54 |
||
|
9
|
9
3070156 Plug,spark,ngk br8es(10) |
3070156 |
US $4.15 |
||
|
10
|
10
4010129 Cable,sol/start,dblboot |
4010129 |
US $40.37 |
||
|
11
|
11
5410346 Insul,cable sol, |
5410346 |
US $2.66 |
||
|
12
|
12
7515481 Bolt |
7515481 |
US $3.26 |
||
|
13
|
13
1040687-067 Mount,fr,engine,blk, |
1040687-067 |
US $19.30 |
||
|
16
|
16
7080511 Clamp, narrow band |
7080511 |
US $1.75 |
||
|
17
|
17
5410421 Boot,clutch intake |
5410421 |
US $9.85 |
||
|
18
|
18
7555823 Washer |
7555823 |
US $6.56 |
||
|
19
|
19
7552603 Washer,spring lock(10) |
7552603 |
US $26.30 |
||
|
20
|
20
7512490 Screw |
7512490 |
US $3.75 |
||
|
21
|
21
5242896-067
Bracket, engine mount, front
|
5242896-067 |
— | ||
|
22
|
22
3084717
Engine, short block ec25pf-sb
EC25PFE15; NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorization required; |
3084717 |
— | ||
|
23
|
23
7078577
Decal,drain recoil
|
7078577 |
— | ||
|
24
|
24
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
25
|
25
7051011 Valve,check |
7051011 |
US $9.15 |
||
|
26
|
26
7052005 Fitting, tee |
7052005 |
US $1.77 |
||
|
27
|
27
5242897-067
Bracket, engine mount, rear
|
5242897-067 |
— | ||
|
28
|
28
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
29
|
29
3110028
Mount, engine
|
3110028 |
— | ||
|
30
|
30
2530009 Filter,small,in-line,(10) |
2530009 |
US $6.56 |
||
|
31
|
31
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
