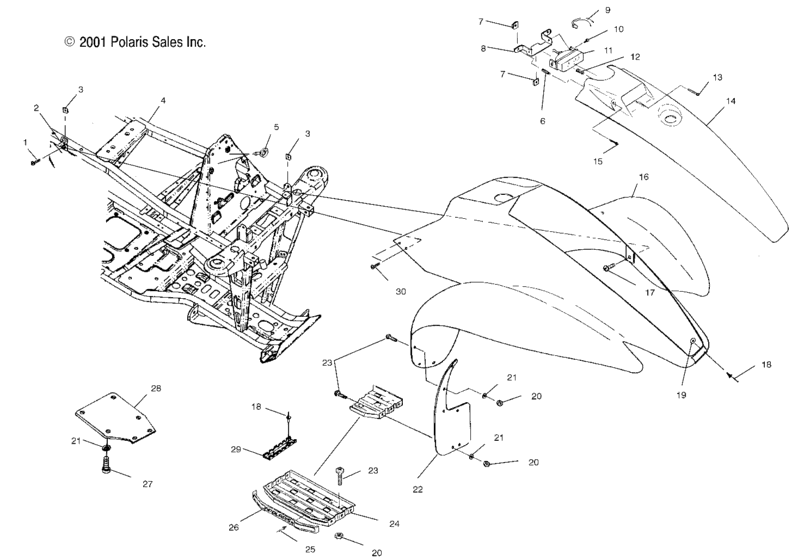

Front cab (A02BA25CA/CB/CD) Diagram Polaris TRAIL BLAZER 250 FREEDOM
- Model code
- A02BA25CB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517386 Screw(10) |
7517386 |
US $19.60 |
||
|
2
|
2
5244482-067
Bracket, cab mount, black, lh
|
5244482-067 |
— | ||
|
2
|
2
5244483-067
Bracket, cab mount, black, rh
|
5244483-067 |
— | ||
|
3
|
3
7670060 Nut, speed |
7670060 |
US $1.49 |
||
|
4
|
4
1013465-067
Main frame,t blazer,blk
|
1013465-067 |
— | ||
|
5
|
5
4020149 Clip,rosebud |
4020149 |
US $7.88 |
||
|
6
|
6
4032093 Spring,adj,(,9 in ) |
4032093 |
US $0.79 |
||
|
7
|
7
7670095
Insert, nut
|
7670095 |
— | ||
| replacement | |||||
|
7
|
7
2201028
New Genuine Part
|
2201028 |
— | ||
|
8
|
8
5241436-067
Bracket, headlight mounting
|
5241436-067 |
— | ||
| replacement | |||||
|
8
|
8
2201028
New Genuine Part
|
2201028 |
— | ||
|
9
|
9
4030056 Bulb,h/l |
4030056 |
US $18.57 |
||
|
10
|
10
7512084 Screw(10) |
7512084 |
US $19.60 |
||
|
11
|
11
4010206 Headlight-2x5,single beam,55wIncl. 9; |
4010206 |
US $78.56 |
||
|
12
|
12
4032094 Spring,adj,(2,5 in) |
4032094 |
US $1.28 |
||
|
13
|
13
7511886 Screw |
7511886 |
US $3.75 |
||
|
14
|
14
5432179-053
Cover, front, yellow
CA; |
5432179-053 |
— | ||
|
14
|
14
5432179-288
Cover-front,blazing red **
CB; |
5432179-288 |
— | ||
|
14
|
14
5432179-341 Cover-front,sonic blue metCD; |
5432179-341 |
US $137.88 |
||
|
15
|
15
7511887 Screw |
7511887 |
US $2.45 |
||
|
16
|
16
2632424-133
Cab,fr,gen 3,svc,white
CA;w/Warning Decals; |
2632424-133 |
— | ||
|
16
|
16
2632424-288
Asm-cab,fr,geniii,blazing red
CB;w/Warning Decals; |
2632424-288 |
— | ||
|
16
|
16
2632424-341
Asm-cab,fr,geniii,svc son blue
CD;w/Warning Decals; |
2632424-341 |
— | ||
|
17
|
17
7517916 Scr-1/4-20x3/4-tr/tx/tap-m |
7517916 |
US $5.22 |
||
|
18
|
18
7621472 Rivet(50) * |
7621472 |
US $98 |
||
|
19
|
19
7558201 Washer, flat |
7558201 |
US $2.92 |
||
|
20
|
20
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
21
|
21
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
22
|
22
5811831 Mudflap-front,hybrid,lh |
5811831 |
US $27.39 |
||
|
22
|
22
5850150 Mudflap,rh,fr,hybrid |
5850150 |
US $27.39 |
||
|
23
|
23
7512282 Bolt, black(10) |
7512282 |
US $1.89 |
||
|
24
|
24
1013249-067 Footpad,cds,steel,blk |
1013249-067 |
US $79.17 |
||
|
25
|
25
7661825 Rivet,(50) |
7661825 |
US $0.79 |
||
|
26
|
26
5431484
Trim, footrest
|
5431484 |
— | ||
|
27
|
27
7515179 Screw |
7515179 |
US $2.98 |
||
|
28
|
28
5432763 Guard,rock |
5432763 |
US $128.21 |
||
|
29
|
29
5242525-067 Brkt,heel cleat,blk |
5242525-067 |
US $20.28 |
||
|
30
|
30
7517685 Screw(10) |
7517685 |
US $65.60 |
||
