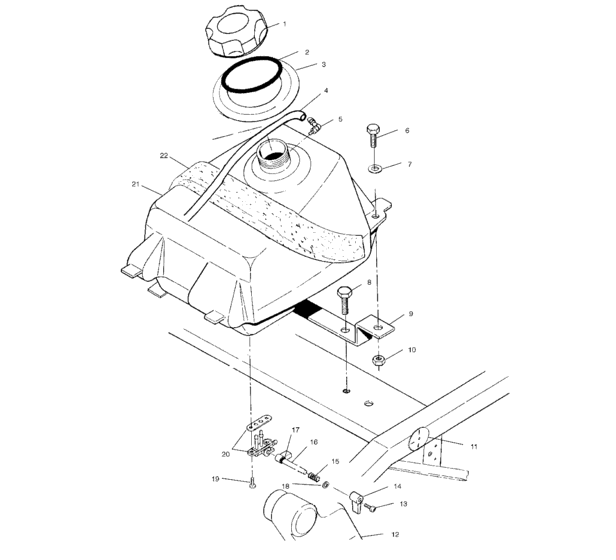

Fuel tank (A02BA25CA/CB/CD) Diagram Polaris TRAIL BLAZER 250 FREEDOM
- Model code
- A02BA25CB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5433687 Cap,gas tankIncl. 2;Incl. 2; |
5433687 |
US $24.08 |
||
|
2
|
2
5812123 Gasket |
5812123 |
US $10.03 |
||
|
3
|
3
5410842
Grommet,fueltank
|
5410842 |
— | ||
|
4
|
4
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
5
|
5
5431053 Vent, tank |
5431053 |
US $10.15 |
||
|
6
|
6
7512310 Screw(10) |
7512310 |
US $0.79 |
||
|
7
|
7
7555734 Washer,flat(10) |
7555734 |
US $0.79 |
||
|
8
|
8
7512208 Screw |
7512208 |
US $3.26 |
||
|
9
|
9
5220916-067
Brkt,r,tank mt,blk,
|
5220916-067 |
— | ||
|
10
|
10
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
11
|
11
7074637
Decal,fuel lever
|
7074637 |
— | ||
|
13
|
13
7511840 Screw(10) |
7511840 |
US $0.79 |
||
|
14
|
14
5431021 Lever, fuel |
5431021 |
US $5.25 |
||
|
15
|
15
7041209 Spring,lever,compress, |
7041209 |
US $9.26 |
||
|
16
|
16
5431391 Ext,,fuel lever |
5431391 |
US $9.19 |
||
|
17
|
17
5432291 Grommet |
5432291 |
US $2.98 |
||
|
18
|
18
7555726 Washer |
7555726 |
US $6.56 |
||
|
19
|
19
7515136 Screw(10) * |
7515136 |
US $1.89 |
||
|
20
|
20
7051006 Valve asm, fuelIncl. Gasket;Incl. Gasket; |
7051006 |
US $49.25 |
||
|
20
|
20
5810859 Gasket, fuel valve |
5810859 |
US $3.75 |
||
|
21
|
21
2520241
Asm,-fuel tank w/ valve
Incl. 5,19,20;Incl. 5,19,20; |
2520241 |
— | ||
|
22
|
22
5811527 Seal,foam |
5811527 |
US $13.79 |
