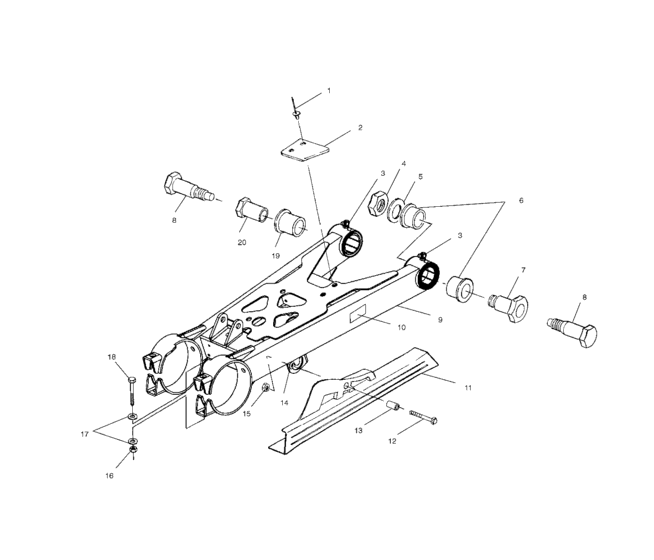

Swing arm/shock mounting (A02BA25CA/CB/CD) Diagram Polaris TRAIL BLAZER 250 FREEDOM
- Model code
- A02BA25CB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7661046 Rivet-pop,3/16(,376-,500)(50) |
7661046 |
US $1.89 |
||
|
2
|
2
5432727 Guide,chain pad |
5432727 |
US $18.32 |
||
|
3
|
3
7080510 Fitting, zerk,90 degree |
7080510 |
US $7.68 |
||
|
4
|
4
7547082 Nut,hex,jam |
7547082 |
US $40.15 |
||
|
5
|
5
7556035 Washer,flat |
7556035 |
US $9.85 |
||
|
6
|
6
5433412 Bushing, swing arm, rh |
5433412 |
US $10.83 |
||
|
7
|
7
5131696
Bushing, swing arm pivot, rh
|
5131696 |
— | ||
|
8
|
8
5131697 Bolt,swingarm pivot |
5131697 |
US $44.29 |
||
|
9
|
9
1580111
Arm asm,swing
Incl. 3,6,19;CA; |
1580111 |
— | ||
|
9
|
9
1541818
Asm., swing arm
Incl. 3,6,19;CB; |
1541818 |
— | ||
|
10
|
10
7078572 Decal-"chain freeplay",hybrid |
7078572 |
US $1.89 |
||
|
11
|
11
5432854 Guard,chain |
5432854 |
US $35.67 |
||
|
12
|
12
7515304 Screw-flanged |
7515304 |
US $3.75 |
||
|
13
|
13
5332828 Bushing |
5332828 |
US $7.18 |
||
|
14
|
14
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
15
|
15
7542321 Nut,flange(10) |
7542321 |
US $1.89 |
||
|
16
|
16
7547066 Nut-7/16-20,nylok,y (10) |
7547066 |
US $39.40 |
||
|
17
|
17
7555883 Washer |
7555883 |
US $2.98 |
||
|
18
|
18
7512576 Bolt |
7512576 |
US $6.69 |
||
|
19
|
19
5433411
Bushing, swing arm, lh
|
5433411 |
— | ||
|
20
|
20
5131695
Bushing, swing arm pivot, lh
|
5131695 |
— |
