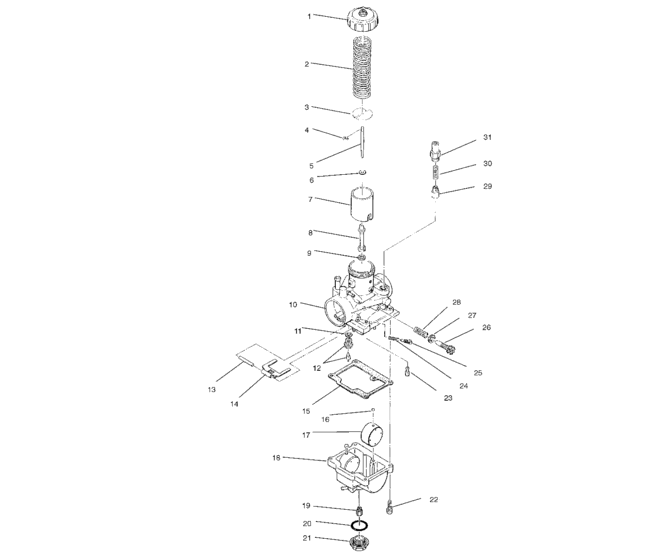

Carburetor assy (W968540; SPORT) Diagram Polaris TRAIL BLAZER ES
- Model code
- W967827
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3130184 Asm,,top, mixing chamber |
3130184 |
US $27.39 |
||
|
2
|
2
3130496 Spring, throttle |
3130496 |
US $18.32 |
||
|
3
|
3
3130027 Plate,throttleThrottle; |
3130027 |
US $9.15 |
||
|
4
|
4
3130003
E-ring
10; |
3130003 |
— | ||
| replacement | |||||
|
4
|
4
3130508 E-ring(10)10; |
3130508 |
US $3.75 |
||
|
5
|
5
3130378
Needle,jet,(6f9-3)
6F9-3;6F09-3; |
3130378 |
— | ||
|
6
|
6
3130355 Washer |
3130355 |
US $4.73 |
||
|
7
|
7
3130494
Valve,throttle,(1,5)
1.5;1.5; |
3130494 |
— | ||
|
8
|
8
3130429 Needle jet asm,0-6;480; |
3130429 |
US $35.67 |
||
|
9
|
9
3130596
Ring,main jet
|
3130596 |
— | ||
|
10
|
10
3130670
Carburetor
Incl. 1-31; |
3130670 |
— | ||
| replacement | |||||
|
10
|
10
3130709
Carburetor
Incl. 1-31; |
3130709 |
— | ||
|
11
|
11
3130047 Washer(10)10; |
3130047 |
US $1.49 |
||
|
12
|
12
3130495
Needle valve asm.
2.5;2.5; |
3130495 |
— | ||
|
13
|
13
3130361 Pin, float |
3130361 |
US $8.17 |
||
|
14
|
14
3130018 Arm,float |
3130018 |
US $18.32 |
||
|
15
|
15
3130020 Gasket,float chamber |
3130020 |
US $17.24 |
||
|
16
|
16
3130237 Cap(10)10; |
3130237 |
US $1.89 |
||
|
17
|
17
3130430 Float asm, |
3130430 |
US $35.44 |
||
|
18
|
18
3130443
Bowl, float (350)
350; |
3130443 |
— | ||
|
19
|
19
3130637 Jet,main,#250(10)10;#250; |
3130637 |
US $6.11 |
||
|
20
|
20
3130239 O ring |
3130239 |
US $12.20 |
||
|
21
|
21
3130432 Screw, guide |
3130432 |
US $21.67 |
||
|
22
|
22
3130025 Asm,,screw & washer(10)10; |
3130025 |
US $1.89 |
||
|
23
|
23
3130066 Jet,pilot,#35(10)10;#35; |
3130066 |
US $7.09 |
||
|
24
|
24
3130012 Spring,air adjust |
3130012 |
US $7.09 |
||
|
25
|
25
3130011 Screw,air |
3130011 |
US $16.24 |
||
|
26
|
26
3130009 Screw,throttle stop |
3130009 |
US $16.24 |
||
|
27
|
27
3130447
Washer
|
3130447 |
— | ||
|
28
|
28
3130436
Spring,throt,adj,
|
3130436 |
— | ||
|
29
|
29
3130328 Asm,,plunger |
3130328 |
US $27.39 |
||
|
30
|
30
3130006
Spring,plunger
|
3130006 |
— | ||
|
31
|
31
3130199 Holder,guide |
3130199 |
US $19.30 |
||
