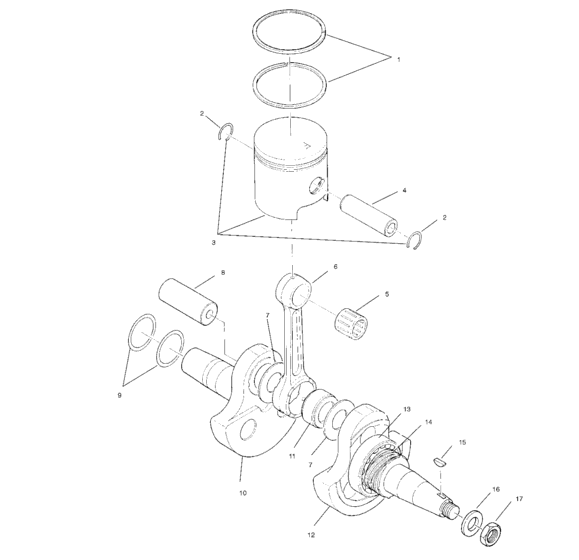

Piston and crankshaft (W967827; BLAZER) Diagram Polaris TRAIL BLAZER ES
- Model code
- W967827
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083546 Piston,ring,standard * |
3083546 |
US $35.44 |
||
|
1
|
1
3083678 Set,piston,ring,,010"/,25mm o/s |
3083678 |
US $40.01 |
||
|
1
|
1
3083717 Piston,ring,,020"/,50mm o/s* |
3083717 |
US $34.25 |
||
|
1
|
1
3083974 Set,piston,ring,,040"/1,00mm o/O/S,1.0MM; |
3083974 |
US $42.53 |
||
|
2
|
2
3083839 Clip,piston pin,(10)10; |
3083839 |
US $69.80 |
||
|
3
|
3
3083942 Piston,standard* |
3083942 |
US $160 |
||
|
3
|
3
3083943
Piston,,010"/,25mm o/s
|
3083943 |
— | ||
|
3
|
3
3083944
Piston,,020"/,50mm o/s
|
3083944 |
— | ||
|
3
|
3
3083972
Set,piston,,040"/1,00mm o/s*
1.00mm/.04" O/S; 1.0 MM O/S; |
3083972 |
— | ||
|
4
|
4
3083838 Pin, piston * |
3083838 |
US $30.54 |
||
|
5
|
5
3083626 Bearing, small end * |
3083626 |
US $29.54 |
||
|
6
|
6
3082790 Rod connecting * |
3082790 |
US $162.51 |
||
|
7
|
7
3083804 Spacer |
3083804 |
US $17.24 |
||
|
8
|
8
3082796 Crank pin pto |
3082796 |
US $26.41 |
||
|
9
|
9
3083629 Spacer #10.2mm; |
3083629 |
US $5.64 |
||
|
9
|
9
3083630
Spacer #3
0.1mm; |
3083630 |
— | ||
|
10
|
10
3083802
Crankshaft,#2
|
3083802 |
— | ||
|
11
|
11
3083803 Bearing,lge,end |
3083803 |
US $28.58 |
||
|
12
|
12
3084582
Crankshaft asm,
Incl. 6-8,10-14; |
3084582 |
— | ||
|
12
|
12
3083899 Crankshaft #1 |
3083899 |
US $454.95 |
||
|
13
|
13
3084580 Bearing, ball * |
3084580 |
US $36.45 |
||
|
14
|
14
3083745
Gear, crankshaft
O/I; |
3083745 |
— | ||
|
15
|
15
3080130
Key, woodruff
|
3080130 |
— | ||
| replacement | |||||
|
15
|
15
3081543 Key woodruff |
3081543 |
US $9.15 |
||
|
16
|
16
3083904
Washer
|
3083904 |
— | ||
| replacement | |||||
|
16
|
16
3086767
Washer
|
3086767 |
— | ||
|
17
|
17
3083905
Nut,lock
|
3083905 |
— | ||
