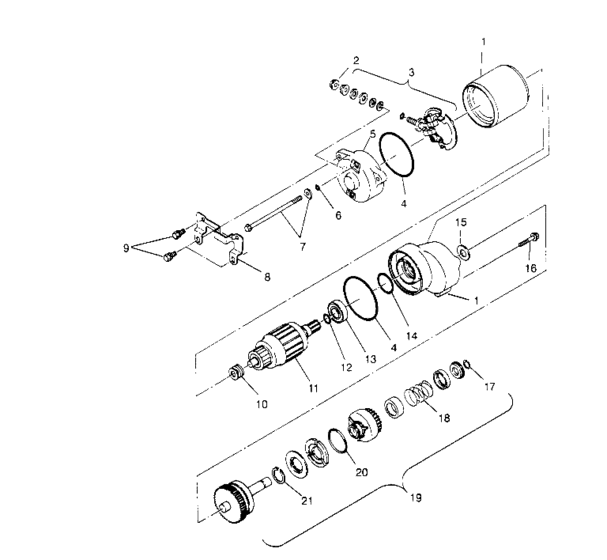

Starting motor (Trail Boss W958527) Diagram Polaris TRAIL BOSS 250
- Model code
- W958527
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3084403
Starter motor asm.
Incl. 2-4, 6, 7, 10-14; |
3084403 |
— | ||
| replacement | |||||
|
1
|
1
3085393
Starter motor asm, *
Incl. 2-4, 6, 7, 10-14; |
3085393 |
— | ||
|
1
|
1
3084402
Starter motor asm.
|
3084402 |
— | ||
| replacement | |||||
|
1
|
1
3087043
Asm-starting motor
|
3087043 |
— | ||
|
2
|
2
3083649 Nut, flange(10)10; |
3083649 |
US $1.89 |
||
|
3
|
3
3084406
Brush, carbon, set
|
3084406 |
— | ||
|
4
|
4
3084405 Ring, rubber (10) |
3084405 |
US $3.75 |
||
|
5
|
5
3085032 Cover,rear,starter300-400; |
3085032 |
US $101.45 |
||
|
6
|
6
3084408 O-ring |
3084408 |
US $9.15 |
||
|
7
|
7
3084407 Bolt, through |
3084407 |
US $3.26 |
||
|
8
|
8
3083650
Bracket
|
3083650 |
— | ||
|
9
|
9
3081665 Asm,, bolt and washer(10)10; |
3081665 |
US $1.77 |
||
|
10
|
10
3083754 Washer set |
3083754 |
US $2.98 |
||
|
11
|
11
3084404 Armature asm, * |
3084404 |
US $256.04 |
||
|
12
|
12
3083934 O ring |
3083934 |
US $3.26 |
||
|
13
|
13
3083777 Ball bearing * |
3083777 |
US $36.45 |
||
|
14
|
14
3083741
O ring
|
3083741 |
— | ||
|
15
|
15
3083737
Washer
|
3083737 |
— | ||
| replacement | |||||
|
15
|
15
7555908 Washer |
7555908 |
US $5.22 |
||
|
16
|
16
3082038 Bolt&washer asm, |
3082038 |
US $1.49 |
||
|
17
|
17
3084409 Clip |
3084409 |
US $4.73 |
||
|
18
|
18
3084410 Spring, return |
3084410 |
US $3.06 |
||
|
19
|
19
3083647
Gear shaft asm.
Incl. 15; |
3083647 |
— | ||
| replacement | |||||
|
19
|
19
3087030
Asm., gear shaft
Incl. 15; |
3087030 |
— | ||
|
20
|
20
3084411 Spring, weight |
3084411 |
US $19.30 |
||
|
21
|
21
3084412 Clip |
3084412 |
US $7.68 |
||
