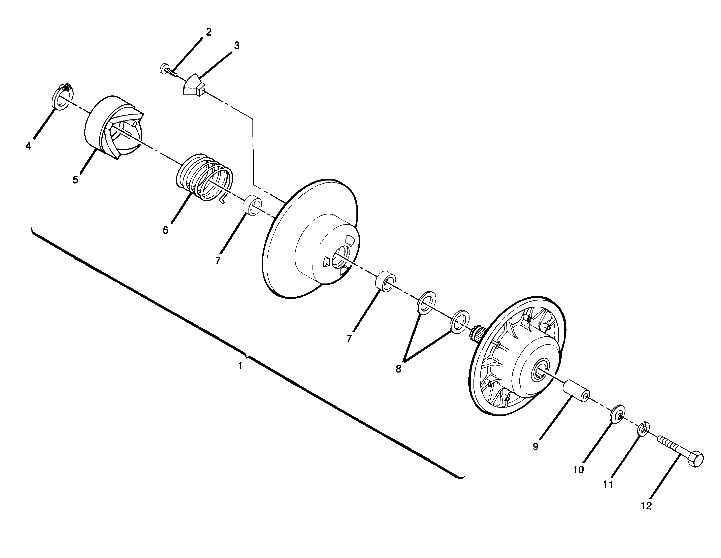

Driven clutch assembly Diagram Polaris TRAIL BOSS 250
- Model code
- X888528
- Year
- 1988
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1322127
Clutch, driven
|
1322127 |
— | ||
|
2
|
2
7511854 Bolt(10)10; |
7511854 |
US $1.89 |
||
|
3
|
3
5430766
Button, ramp
|
5430766 |
— | ||
| replacement | |||||
|
3
|
3
5450873 BUTTON |
5450873 |
US $27.30 |
||
|
4
|
4
7714401 Retaining ring10; |
7714401 |
US $3.26 |
||
|
5
|
5
5630321
Ramp,stationary
|
5630321 |
— | ||
| replacement | |||||
|
5
|
5
5132344 Ramp,sta,comp (mach) |
5132344 |
US $76.81 |
||
|
6
|
6
7041198 Spring,clutch,(red)RED; |
7041198 |
US $35.67 |
||
|
7
|
7
3576504 Bushing,moveable,1/2 inch |
3576504 |
US $21.49 |
||
|
8
|
8
7556804 Wshr-1,505x2,00x,030-y10; |
7556804 |
US $0.79 |
||
|
9
|
9
5211041
Spacer,washer,driven clutch
|
5211041 |
— | ||
|
10
|
10
5220646 Washer, domed10; |
5220646 |
US $6.56 |
||
|
11
|
11
755290L
Desc not_available
|
755290L |
— | ||
|
12
|
12
7515327 Bolt10; |
7515327 |
US $3.75 |
||
