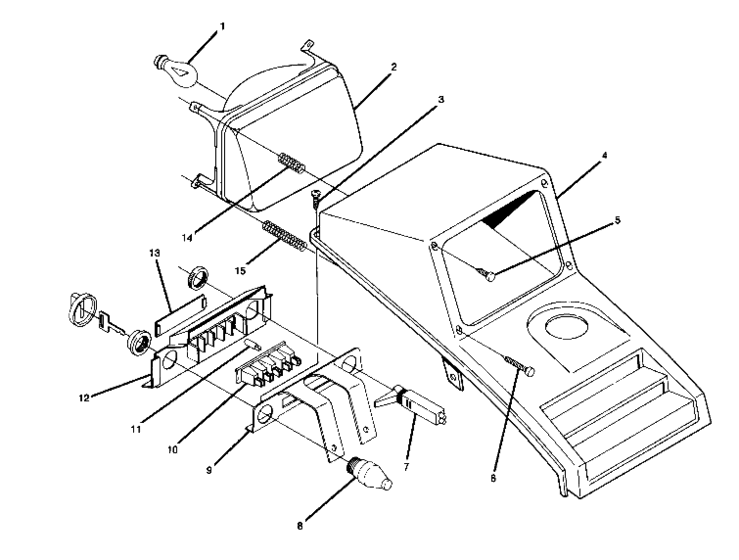

Headlight assembly Diagram Polaris TRAIL BOSS 250
- Model code
- X888528
- Year
- 1988
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4032028
Headlight asm,partial
|
4032028 |
— | ||
|
2
|
2
4032038
Headlight asm,
|
4032038 |
— | ||
|
3
|
3
7512015
Screw
10; |
7512015 |
— | ||
| replacement | |||||
|
3
|
3
7512017 Screw10; |
7512017 |
US $2.45 |
||
|
4
|
4
5430973
Cover, oil tank
No Longer Available; |
5430973 |
— | ||
|
5
|
5
4032003
Screw, adj.
10; |
4032003 |
— | ||
|
6
|
6
4032042 Screw,adjust,(atv)ATV;10; |
4032042 |
US $3.94 |
||
|
7
|
7
7080371 Cable, choke |
7080371 |
US $86.68 |
||
|
8
|
8
4110065
Switch,ignition,modified
|
4110065 |
— | ||
|
9
|
9
5220965
Brkt,ign.panel
|
5220965 |
— | ||
| replacement | |||||
|
9
|
9
5220965-067 Brkt, ign, panel |
5220965-067 |
US $18.76 |
||
|
10
|
10
4032037 Strip, socket |
4032037 |
US $33.50 |
||
|
11
|
11
4030042 Bulb |
4030042 |
US $4.34 |
||
|
12
|
12
5430995
Panel, ignition
|
5430995 |
— | ||
|
13
|
13
2652049
Lens asm,pilot light
|
2652049 |
— | ||
|
14
|
14
4032002 Spring-adj |
4032002 |
US $22.89 |
||
|
15
|
15
4032041
Spring,adj,
|
4032041 |
— | ||
