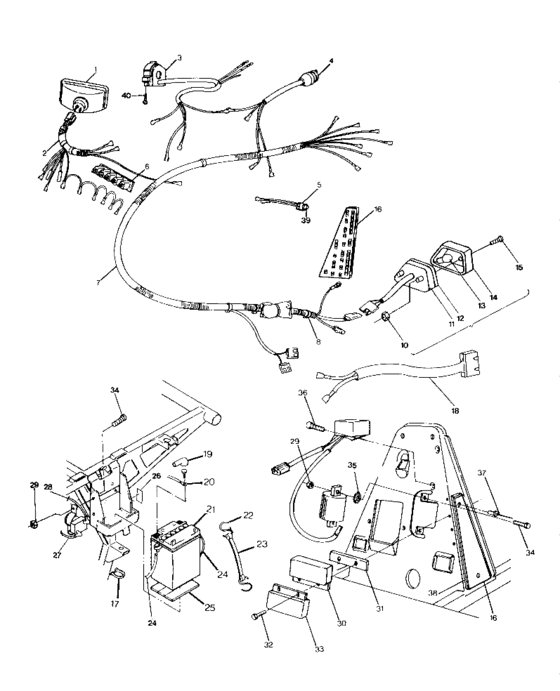

Wiring harness (250 2X4/W927527) Diagram Polaris TRAIL BOSS 2X4
- Model code
- W927527
- Year
- 1992
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4032038
Headlight asm,
|
4032038 |
— | ||
|
2
|
2
2460283
Harness, headlight
|
2460283 |
— | ||
| replacement | |||||
|
2
|
2
2460427
Harness,headlight
|
2460427 |
— | ||
|
3
|
3
4110095
Switch,hi/lo/st.
|
4110095 |
— | ||
| replacement | |||||
|
3
|
3
4110157
Switch,lh,h'bar(atv)
|
4110157 |
— | ||
|
4
|
4
4110086
Switch,ign.
MODIFIED; |
4110086 |
— | ||
| replacement | |||||
|
4
|
4
4110140 Switch, ignitionMODIFIED; |
4110140 |
US $118.18 |
||
|
5
|
5
4110083 Sw,o'ride,rev,limit, |
4110083 |
US $44.33 |
||
|
6
|
6
4032037 Strip, socket |
4032037 |
US $33.50 |
||
|
7
|
7
2460284
Harness, main wire
|
2460284 |
— | ||
| replacement | |||||
|
7
|
7
2460405
Harness, main wire,4whl
|
2460405 |
— | ||
|
8
|
8
7080272 Strap, blk |
7080272 |
US $3.64 |
||
|
10
|
10
7670054
Nut, push-on (10)
10; |
7670054 |
— | ||
|
11
|
11
4032064 Backing,taillight |
4032064 |
US $81.76 |
||
|
12
|
12
4032045 Gasket |
4032045 |
US $5.11 |
||
|
13
|
13
4030043 Bulb |
4030043 |
US $4.94 |
||
|
14
|
14
4032046 Lens,taillight |
4032046 |
US $18.32 |
||
|
15
|
15
4032029 Screw |
4032029 |
US $2.98 |
||
|
16
|
16
4040022
Board,terminal
|
4040022 |
— | ||
|
17
|
17
7080303
Clamp, poly
|
7080303 |
— | ||
|
18
|
18
2460310
Harness
BRAKELIGHT KIT; |
2460310 |
— | ||
|
19
|
19
5410346 Insul,cable sol, |
5410346 |
US $2.66 |
||
|
20
|
20
4010067
Cable,ground/eng,
|
4010067 |
— | ||
|
21
|
21
4140006 Battery |
4140006 |
US $275.60 |
||
|
22
|
22
7010032 Hook-battery strap(10)10; |
7010032 |
US $26.30 |
||
|
23
|
23
5410424
Strap, battery holddown
|
5410424 |
— | ||
|
24
|
24
5521087
Line,vent,
38.0``; |
5521087 |
— | ||
| replacement | |||||
|
24
|
24
8360009-600 Line,fuel,1/8 id,600 cm,38.0``; |
8360009-600 |
US $27.39 |
||
|
25
|
25
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
26
|
26
7072606
Decal, battery
No Longer Available; |
7072606 |
— | ||
|
27
|
27
4010064
Cable,solenoid/starter
|
4010064 |
— | ||
|
28
|
28
4010075
Cable,solenoid-strtr.
|
4010075 |
— | ||
|
29
|
29
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
30
|
30
4060087
Rectifier, voltage
|
4060087 |
— | ||
|
31
|
31
5210650
Heat sink
|
5210650 |
— | ||
|
32
|
32
7512018 Screw(10)10; |
7512018 |
US $0.79 |
||
|
33
|
33
4060085 Limiter,rev,speed |
4060085 |
US $101.45 |
||
|
34
|
34
7512007 Bolt10; |
7512007 |
US $2.45 |
||
|
35
|
35
7571602 Washer10; |
7571602 |
US $2.45 |
||
|
36
|
36
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
37
|
37
7621322
Rivet, pop(50)
50; |
7621322 |
— | ||
|
38
|
38
5431152
Shield,term.board
|
5431152 |
— | ||
|
39
|
39
7080379
Boot, o`ride sw.
|
7080379 |
— | ||
|
40
|
40
2010055
Screw
|
2010055 |
— | ||
