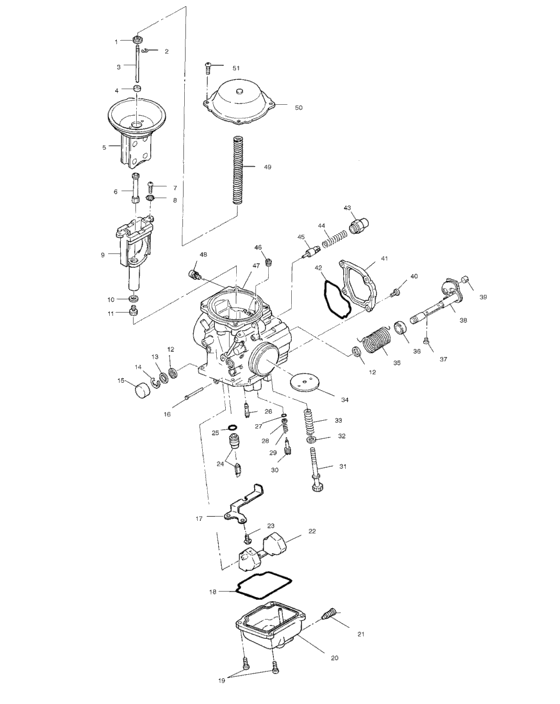

Carburetor assy (A02CA32AA/AB) Diagram Polaris TRAIL BOSS
- Model code
- A02CA32AA/AB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3130507 Ring |
3130507 |
US $7.09 |
||
|
2
|
2
3130508 E-ring(10) |
3130508 |
US $3.75 |
||
|
3
|
3
3130730 Jet needle,(j8-5f14) |
3130730 |
US $24.43 |
||
|
4
|
4
3130752 Ring |
3130752 |
US $7.09 |
||
|
5
|
5
3130732 Diaphragm asm, |
3130732 |
US $165.13 |
||
|
6
|
6
3131329 Jet-needle(p-2m) |
3131329 |
US $45.69 |
||
|
7
|
7
3130541 Screw |
3130541 |
US $9.85 |
||
|
8
|
8
3130540 Washer,spring |
3130540 |
US $2.98 |
||
|
9
|
9
3131128
Jet block,asm,
|
3131128 |
— | ||
|
10
|
10
3130014 Washer (10) |
3130014 |
US $1.77 |
||
|
11
|
11
3131328
Jet, main
#120; |
3131328 |
— | ||
|
12
|
12
3130515 Seal |
3130515 |
US $14.77 |
||
|
14
|
14
3130518 E-ring |
3130518 |
US $2.28 |
||
|
15
|
15
3130519 Cap |
3130519 |
US $8.17 |
||
|
16
|
16
3130361 Pin, float |
3130361 |
US $8.17 |
||
|
17
|
17
3130594 Plate |
3130594 |
US $18.32 |
||
|
18
|
18
3130532 O-ring |
3130532 |
US $19.69 |
||
|
19
|
19
3130520 Screw |
3130520 |
US $1.77 |
||
|
20
|
20
3130590 Floatbody asm, |
3130590 |
US $118.06 |
||
|
21
|
21
3130521 Screw |
3130521 |
US $14.09 |
||
|
22
|
22
3130529 Float asm, |
3130529 |
US $92.16 |
||
|
23
|
23
3130591 Screw(10) |
3130591 |
US $1.89 |
||
|
24
|
24
3131360 Valve-needle,1,5(push in)1.5; |
3131360 |
US $59.26 |
||
|
25
|
25
3130533 O-ring |
3130533 |
US $26.30 |
||
|
26
|
26
3131327
Jet, pilot
#50; |
3131327 |
— | ||
|
27
|
27
3130522 O-ring* |
3130522 |
US $7.09 |
||
|
28
|
28
3130523 Washer(10) |
3130523 |
US $3.75 |
||
|
29
|
29
3130525 Spring |
3130525 |
US $3.06 |
||
|
30
|
30
3131131 Adjuster |
3131131 |
US $7.35 |
||
|
31
|
31
3130546 Screw, adj* |
3130546 |
US $7.68 |
||
|
32
|
32
3130545 Ring* |
3130545 |
US $14.28 |
||
|
33
|
33
3130544 Spring |
3130544 |
US $7.09 |
||
|
34
|
34
3131126 Valve-throttle(120)120; |
3131126 |
US $61.06 |
||
|
35
|
35
3130589 Spring |
3130589 |
US $14.28 |
||
|
36
|
36
3130514 Ring |
3130514 |
US $4.34 |
||
|
37
|
37
3130501 Screw |
3130501 |
US $1.77 |
||
|
38
|
38
3130513 Shaft asm,throttle |
3130513 |
US $78.79 |
||
|
39
|
39
3130543 Guide,cable |
3130543 |
US $19.30 |
||
|
40
|
40
3130535 Screw |
3130535 |
US $4.73 |
||
|
41
|
41
3130511 Cover |
3130511 |
US $16.75 |
||
|
42
|
42
3130512 O-ring |
3130512 |
US $20.28 |
||
|
43
|
43
3130199 Holder,guide |
3130199 |
US $19.30 |
||
|
44
|
44
3130538 Spring |
3130538 |
US $3.06 |
||
|
45
|
45
3130593
Asm., plunger
|
3130593 |
— | ||
| replacement | |||||
|
45
|
45
3130539 Plunger asm, |
3130539 |
US $25.43 |
||
|
46
|
46
3131133
Jet,air(#175)
#175; |
3131133 |
— | ||
|
47
|
47
3131383
Asm-carburetor
Incl. 1-38,43-51; |
3131383 |
— | ||
|
48
|
48
3084205 Asm,,screw & washer(10) |
3084205 |
US $1.77 |
||
|
49
|
49
3131129 Spring |
3131129 |
US $18.32 |
||
|
50
|
50
3131127
Cover,asm,
|
3131127 |
— | ||
|
51
|
51
3130592
Screw
|
3130592 |
— | ||
| replacement | |||||
|
51
|
51
3130924 Screw |
3130924 |
US $1.77 |
||
