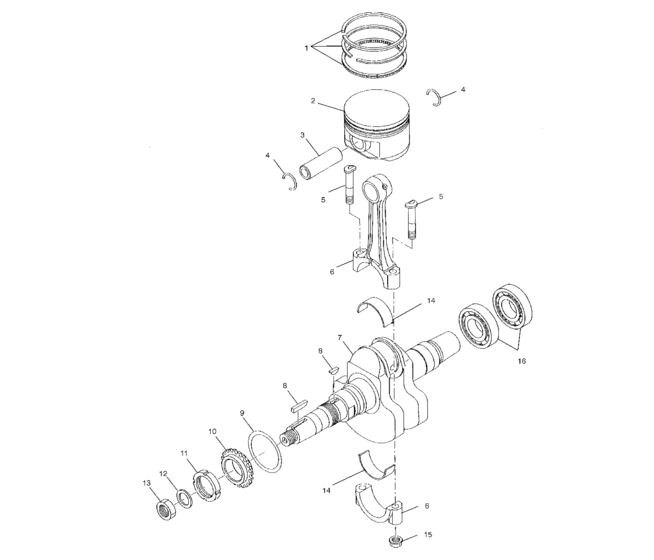

Crankshaft and piston (A02CA32AA/AB) Diagram Polaris TRAIL BOSS
- Model code
- A02CA32AA/AB
- Year
- 2002
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3085774
Set,piston,ring,standard
STD; |
3085774 |
— | ||
|
1
|
1
3085775 Set-piston ring,0,25 o/ss)0.25 O/S; |
3085775 |
US $69.30 |
||
|
1
|
1
3085776 Set,piston,ring,,020"/,50mm o/s0.50 O/S; |
3085776 |
US $79.07 |
||
|
2
|
2
3086800 Piston standard *STD;Incl. 4; |
3086800 |
US $162.58 |
||
|
2
|
2
3086801 Piston,,010"/,25mm o/s0.25 O/S;Incl. 4; |
3086801 |
US $125.07 |
||
|
2
|
2
3086802 Piston,,020"/,50mm o/s0.50 O/S;Incl. 4; |
3086802 |
US $150.06 |
||
|
3
|
3
3086846
Pin, piston
|
3086846 |
— | ||
|
4
|
4
3084167 Clip,piston pin(10) |
3084167 |
US $91 |
||
|
5
|
5
3086425 Bolt |
3086425 |
US $3.75 |
||
|
6
|
6
3087151
Asm., connecting rod
Incl. 5,15; |
3087151 |
— | ||
|
7
|
7
3087119
Crankshaft, complete
Incl. 16; |
3087119 |
— | ||
|
8
|
8
3240168 Key, woodruff,(10) |
3240168 |
US $147.70 |
||
|
9
|
9
3086434 Spacer,0,4 |
3086434 |
US $4.94 |
||
|
9
|
9
3086435 Spacer, 0,6 |
3086435 |
US $4.94 |
||
|
9
|
9
3086436 Spacer, 0,8 |
3086436 |
US $7.18 |
||
|
9
|
9
3086437 Spacer,1,0 |
3086437 |
US $7.18 |
||
|
10
|
10
3086492 Sprocket 1 |
3086492 |
US $26.41 |
||
|
11
|
11
3085528 Nut,slit |
3085528 |
US $28.07 |
||
|
12
|
12
3086767
Washer
|
3086767 |
— | ||
| replacement | |||||
|
12
|
12
3083904
Washer
|
3083904 |
— | ||
|
13
|
13
3083905
Nut,lock
|
3083905 |
— | ||
|
14
|
14
3086427
Bearing,standard
STD; |
3086427 |
— | ||
|
14
|
14
3086798 Bearing,0,05 o/s0.05 U/S;If built after 3/1/99; |
3086798 |
US $19.69 |
||
|
14
|
14
3086799 Bearing,0,25 o/s0.25 U/S;If built after 3/1/99; |
3086799 |
US $15.75 |
||
|
15
|
15
3086426 Nut |
3086426 |
US $3.75 |
||
|
16
|
16
3085815 Bearing,ball |
3085815 |
US $54.15 |
||
