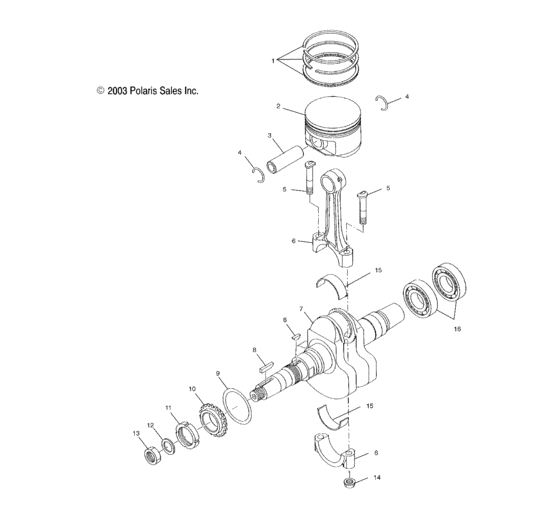

Crankshaft and piston (A04CA32AA/AB/FA) Diagram Polaris TRAIL BOSS 330
- Model code
- A04CA32AA/AB/FA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3087244 Set,piston,ring,standardSTD; |
3087244 |
US $86.26 |
||
|
1
|
1
3087245 Set,piston,ring,,010"/,25mm o/s0.25 O/S; |
3087245 |
US $92.16 |
||
|
1
|
1
3087246 Set,piston,ring,,020"/,50mm o/s0.50 O/S; |
3087246 |
US $86.26 |
||
|
2
|
2
3087243
Set,piston,,020"/,50mm o/s
0.50 O/S;Incl. 4; |
3087243 |
— | ||
|
2
|
2
3087241
Set,piston,standard
STD;Incl. 4; |
3087241 |
— | ||
|
2
|
2
3088820
Set, piston, .010 inch/.25mm o/s
0.25 O/S;Incl. 4; |
3088820 |
— | ||
|
3
|
3
3086846
Pin, piston
|
3086846 |
— | ||
|
4
|
4
3084167 Clip,piston pin(10) |
3084167 |
US $91 |
||
|
5
|
5
3087240 Bolt,connecting rod |
3087240 |
US $7.68 |
||
|
6
|
6
3087239 Asm,,connecting rodIncl. 5,14; |
3087239 |
US $236.83 |
||
|
7
|
7
3087119
Crankshaft, complete
Incl. 16; |
3087119 |
— | ||
|
8
|
8
3240168 Key, woodruff,(10) |
3240168 |
US $147.70 |
||
|
9
|
9
3086437 Spacer,1,0 |
3086437 |
US $7.18 |
||
|
9
|
9
3086434 Spacer,0,4 |
3086434 |
US $4.94 |
||
|
9
|
9
3086435 Spacer, 0,6 |
3086435 |
US $4.94 |
||
|
9
|
9
3086436 Spacer, 0,8 |
3086436 |
US $7.18 |
||
|
10
|
10
3086492 Sprocket 1 |
3086492 |
US $26.41 |
||
|
11
|
11
3085528 Nut,slit |
3085528 |
US $28.07 |
||
|
12
|
12
3086767
Washer
|
3086767 |
— | ||
| replacement | |||||
|
12
|
12
3083904
Washer
|
3083904 |
— | ||
|
13
|
13
3083905
Nut,lock
|
3083905 |
— | ||
|
14
|
14
3086426 Nut |
3086426 |
US $3.75 |
||
|
15
|
15
3086427
Bearing,standard
STD; |
3086427 |
— | ||
|
15
|
15
3086798 Bearing,0,05 o/s0.05; |
3086798 |
US $19.69 |
||
|
15
|
15
3086799 Bearing,0,25 o/s0.25; |
3086799 |
US $15.75 |
||
|
16
|
16
3085815 Bearing,ball |
3085815 |
US $54.15 |
||
