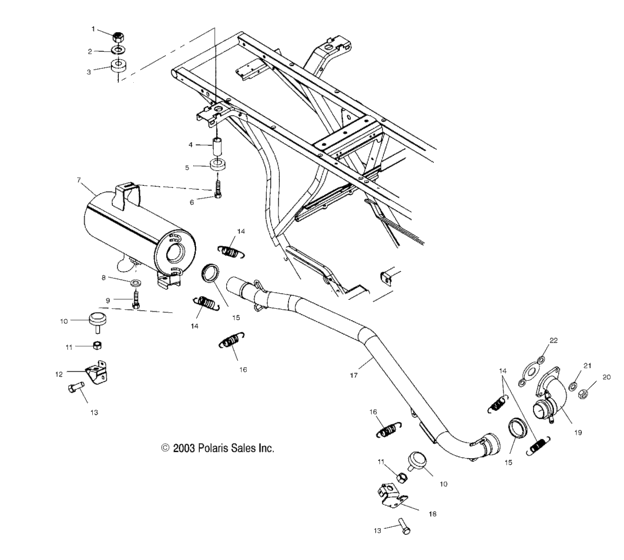

Exhaust system (A04CA32AA/AB/FA) Diagram Polaris TRAIL BOSS 330
- Model code
- A04CA32AA/AB/FA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
2
|
2
7555716 Washer |
7555716 |
US $2.45 |
||
|
3
|
3
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
4
|
4
5132295
Bushing-res mount
|
5132295 |
— | ||
|
5
|
5
5411790 Dampener-vibration |
5411790 |
US $7.18 |
||
|
6
|
6
7515394 Screw(10) |
7515394 |
US $3.75 |
||
|
7
|
7
1261182-029
Weld-silencer,trail boss,blk
|
1261182-029 |
— | ||
|
8
|
8
7556230 Washer-clean out ,51x,75x,09 (1 |
7556230 |
US $0.79 |
||
|
9
|
9
7512666 Bolt |
7512666 |
US $3.75 |
||
|
10
|
10
3110064
Mount, torque stop
|
3110064 |
— | ||
|
11
|
11
7542301 Nut hex |
7542301 |
US $2.45 |
||
|
12
|
12
5243642
Bracket, mount, silencer
|
5243642 |
— | ||
|
13
|
13
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
14
|
14
7041804 Spring |
7041804 |
US $9.85 |
||
|
15
|
15
5243517 Seal,exhaust |
5243517 |
US $18.73 |
||
|
16
|
16
7041769 Spring-extension,2,90" free lg |
7041769 |
US $17.33 |
||
|
17
|
17
1260987-029
Headpipe, black
|
1260987-029 |
— | ||
|
18
|
18
5243643
Bracket, exhaust pipe support
|
5243643 |
— | ||
|
19
|
19
1260960-029
Manifold,blk **
|
1260960-029 |
— | ||
|
20
|
20
3086787
Nut
|
3086787 |
— | ||
| replacement | |||||
|
20
|
20
3080285
Nut
|
3080285 |
— | ||
|
21
|
21
3080051
Washer, spring
|
3080051 |
— | ||
| replacement | |||||
|
21
|
21
3080530 Washer, spring lock |
3080530 |
US $1.89 |
||
|
22
|
22
3086421 Gasket, exhaust |
3086421 |
US $14.28 |
||
