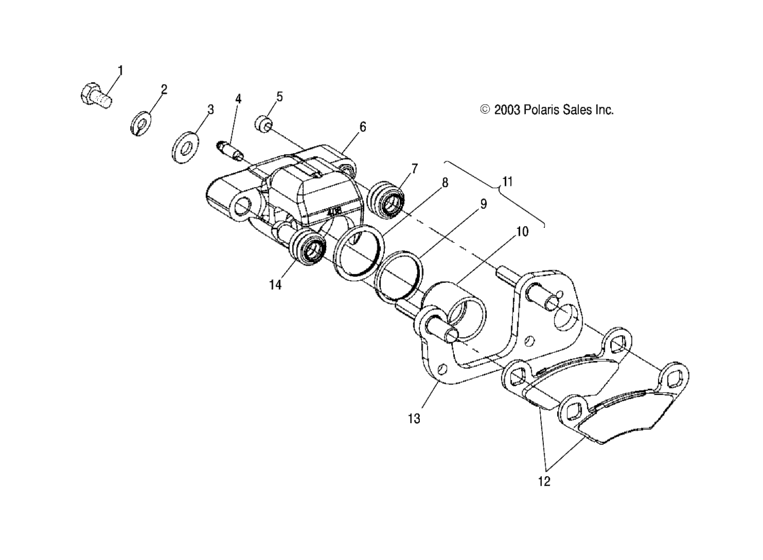

Front brake (A04CA32AA/AB/FA) Diagram Polaris TRAIL BOSS 330
- Model code
- A04CA32AA/AB/FA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512365 Screw, cap(10) |
7512365 |
US $1.49 |
||
|
2
|
2
7552901 Washer,spring lock(10) |
7552901 |
US $39.40 |
||
|
3
|
3
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
4
|
4
7080352 Screw,bleeder (10) |
7080352 |
US $65.60 |
||
|
5
|
5
7515489 Scr-3/8-24x5/16 soc set-y |
7515489 |
US $3.75 |
||
|
6
|
6
5133407
Caliper, brake, lh
|
5133407 |
— | ||
|
6
|
6
5133408
Caliper, brake, rh
|
5133408 |
— | ||
|
7
|
7
5410494
Boot, pin seal
|
5410494 |
— | ||
|
8
|
8
5410779 Ring,square,molded,,094 |
5410779 |
US $13.04 |
||
|
9
|
9
5410780 Ring,square,molded,,103x,134 |
5410780 |
US $13.04 |
||
|
10
|
10
5132294
Piston, brake, long
|
5132294 |
— | ||
| replacement | |||||
|
10
|
10
1930665 Piston & seal,kit |
1930665 |
US $54.15 |
||
|
11
|
11
1930665 Piston & seal,kitIncl. 8-10; |
1930665 |
US $54.15 |
||
|
12
|
12
2202412 KIT BRAKE PAD ASM (4) |
2202412 |
US $68.92 |
||
|
13
|
13
1910412
Mount,asm,caliper
|
1910412 |
— | ||
|
14
|
14
5410495
Boot, bushing
|
5410495 |
— | ||
