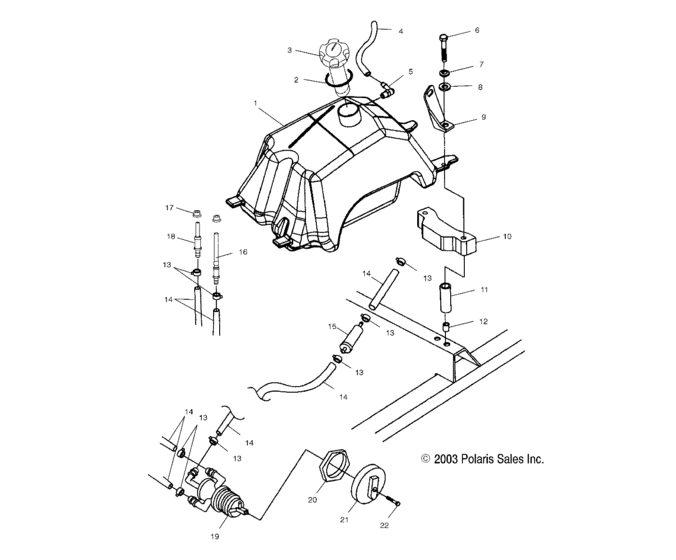

Fuel tank (A04CA32AA/AB/FA) Diagram Polaris TRAIL BOSS 330
- Model code
- A04CA32AA/AB/FA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2520362
Asm-fuel tank
|
2520362 |
— | ||
|
2
|
2
5812123 Gasket |
5812123 |
US $10.03 |
||
|
3
|
3
2873626
Kit,gauge,fuel
|
2873626 |
— | ||
|
4
|
4
8360009-600 Line,fuel,1/8 id,600 cm, |
8360009-600 |
US $27.39 |
||
|
5
|
5
5431053 Vent, tank |
5431053 |
US $10.15 |
||
|
6
|
6
7517451 Bolt |
7517451 |
US $3.75 |
||
|
7
|
7
7552801 Washer, spring lock(10) |
7552801 |
US $2.45 |
||
|
8
|
8
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
9
|
9
5222155 Brkt-fuel cover mnt,rh,pltd |
5222155 |
US $17.10 |
||
| replacement | |||||
|
9
|
9
5222155-067
Bracket, fuel cover mount, rear, rh
|
5222155-067 |
— | ||
|
9
|
9
5222154 Brkt-fuel cover mnt,lh,pltd |
5222154 |
US $17.10 |
||
| replacement | |||||
|
9
|
9
5222154-067
Bracket, fuel cover mount, rear, lh
|
5222154-067 |
— | ||
|
10
|
10
5811951 Seal,foam 2" thk |
5811951 |
US $19.69 |
||
|
11
|
11
5332457 Spacer |
5332457 |
US $12.11 |
||
|
12
|
12
7547069 Nutsert,hex |
7547069 |
US $3.26 |
||
|
13
|
13
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
14
|
14
8450040-600 Line fuel,1/4 id(600 cm,) |
8450040-600 |
US $65.99 |
||
|
15
|
15
2530009 Filter,small,in-line,(10) |
2530009 |
US $6.56 |
||
|
16
|
16
7052350
Fitting-outlet,main,y prs
|
7052350 |
— | ||
|
17
|
17
7052362 Grommet-flanged,,36x,56x1,06 |
7052362 |
US $15.07 |
||
|
18
|
18
7052346 Fitting-fuel outlet,res z prs |
7052346 |
US $35.21 |
||
|
19
|
19
7052161 Valve,3-way |
7052161 |
US $31.52 |
||
|
20
|
20
5432733 Nut,fuel valve |
5432733 |
US $2.98 |
||
|
21
|
21
5432559 Knob,fuel valve |
5432559 |
US $9.15 |
||
|
22
|
22
7517505 Screw(10) |
7517505 |
US $1.49 |
||
