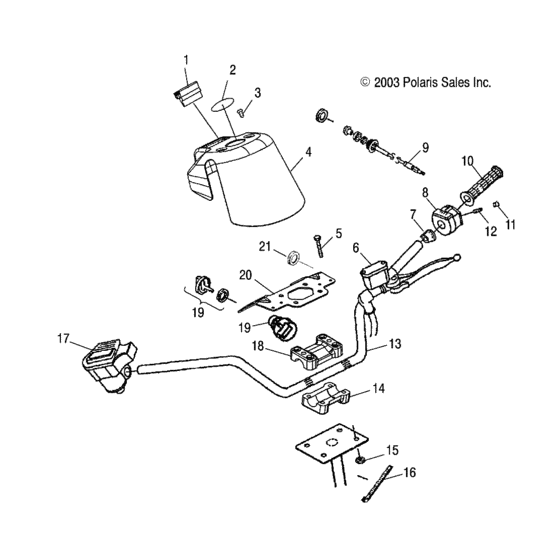

Handlebar (A04CA32AA/AB/FA) Diagram Polaris TRAIL BOSS 330
- Model code
- A04CA32AA/AB/FA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4010315
Panel, indicator light, 3 position
|
4010315 |
— | ||
| replacement | |||||
|
1
|
1
4010459
Panel-indicator,svc,std pvt
|
4010459 |
— | ||
|
2
|
2
7078465 Logo-polaris star |
7078465 |
US $14.04 |
||
|
3
|
3
7518176 Scr-10-24x1/2 ph/tx/trird/semb |
7518176 |
US $3.26 |
||
|
4
|
4
5434643-070 Panel-instrument,black ** |
5434643-070 |
US $65.99 |
||
|
5
|
5
7515189 Screw(10) * |
7515189 |
US $1.89 |
||
|
7
|
7
5433903 Spacer-switch,lh,99 |
5433903 |
US $10.61 |
||
|
8
|
8
4010592
Switch, handlebar, hi/lo/off
|
4010592 |
— | ||
|
9
|
9
7081177 Cable-choke,friction,26" |
7081177 |
US $31.52 |
||
|
10
|
10
5433834-070 Grip-hndlbar,7/8 id,black |
5433834-070 |
US $16.24 |
||
|
11
|
11
5432952 Plug,hole |
5432952 |
US $3.15 |
||
|
12
|
12
7517625 Screw,set |
7517625 |
US $2.98 |
||
|
13
|
13
5334127-067 Tube-handlebar,blk |
5334127-067 |
US $68.93 |
||
|
14
|
14
5631973 Block-handlebar, ,89 id |
5631973 |
US $19.30 |
||
|
15
|
15
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
16
|
16
7080138 Cable tie (10) |
7080138 |
US $26.30 |
||
|
18
|
18
5631972 Block-handlebar, peg,89 id |
5631972 |
US $19.30 |
||
|
19
|
19
5433534 Key cover-keyswitch |
5433534 |
US $19.69 |
||
|
19
|
19
4011002
Switch, key
|
4011002 |
— | ||
|
19
|
19
4010278 Key blank (20/21/67/68) series |
4010278 |
US $12.81 |
||
|
19
|
19
4010321 Key blank (22/23/27/28) seriesNOTE: Your key can be duplicated only by obtaining a key blank from Polaris and having it cut by mating it with your existing key.; |
4010321 |
US $14.77 |
||
|
19
|
19
5433733 Nut,ignition switch |
5433733 |
US $14.09 |
||
|
20
|
20
5246406-067
Bracket, instrument panel
|
5246406-067 |
— | ||
|
21
|
21
7080922 Nut,choke,m24x1,5 thd,m29 hex |
7080922 |
US $4.73 |
||
