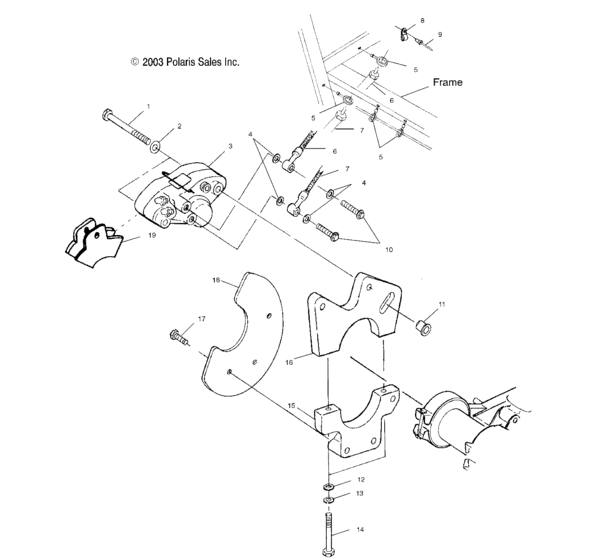

Rear caliper mounting (A04CA32AA/AB/FA) Diagram Polaris TRAIL BOSS 330
- Model code
- A04CA32AA/AB/FA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517231 Screw |
7517231 |
US $9.19 |
||
|
2
|
2
7555806 Washer,flat(10) |
7555806 |
US $13.10 |
||
|
3
|
3
1910691 Asm-caliper,dh2p,w/ins pads |
1910691 |
US $303.29 |
||
|
3
|
3
2201510
Piston,kit,dh2p
|
2201510 |
— | ||
|
3
|
3
2201385 Seal,kit,ww caliper,1910270Incl. O-Rings, Seals; |
2201385 |
US $59.10 |
||
|
3
|
3
2201048
Kit,bleedscrew,ww
Incl. Bleed Screw & Dust Cap; |
2201048 |
— | ||
|
3
|
3
2202705 Kit-bleed screw/fittingIncl. Dust Caps; |
2202705 |
US $41.35 |
||
|
4
|
4
5410988
Seal
|
5410988 |
— | ||
|
5
|
5
7670102 Clip |
7670102 |
US $5.25 |
||
|
7
|
7
1910506
Line-brake,fr m/c to rr,cds
|
1910506 |
— | ||
|
8
|
8
7080539 Clamp,nylon,cable |
7080539 |
US $2.45 |
||
|
9
|
9
7621462 Rivet(50) |
7621462 |
US $1.89 |
||
|
10
|
10
1910499 Bolt-banjo,10mmx1,00 |
1910499 |
US $7.68 |
||
|
11
|
11
5131759 Bushing,caliper mt, |
5131759 |
US $20.28 |
||
|
12
|
12
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
13
|
13
7552901 Washer,spring lock(10) |
7552901 |
US $39.40 |
||
|
14
|
14
7512312 Bolt(10) * |
7512312 |
US $1.49 |
||
|
15
|
15
5131786 Mt,lwr,caliper,axle |
5131786 |
US $61.06 |
||
|
16
|
16
5131787
Mt,upr,caliper,axle
|
5131787 |
— | ||
|
17
|
17
7512325 Bolt |
7512325 |
US $5.25 |
||
|
18
|
18
5242291-067
Guard,brakedisc,r,axle,blk
|
5242291-067 |
— | ||
|
19
|
19
2202411 Kit,rear,brakepad,hvy,duty |
2202411 |
US $44.33 |
