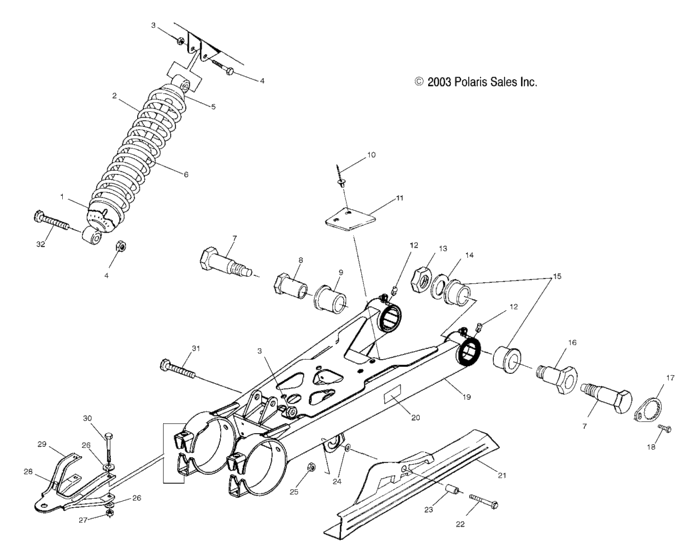

Swing arm/shock mounting (A04CA32AA/AB/FA) Diagram Polaris TRAIL BOSS 330
- Model code
- A04CA32AA/AB/FA
- Year
- 2004
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5630551 Cam,adjust,spring |
5630551 |
US $16.24 |
||
|
2
|
2
7041986-067 Spring-comp,130/165,13,8lg |
7041986-067 |
US $67.34 |
||
|
3
|
3
7542439 Nut,nylok(10) |
7542439 |
US $1.96 |
||
|
4
|
4
7515415 Screw(10) |
7515415 |
US $1.49 |
||
|
5
|
5
5631045
Retainer, spring
|
5631045 |
— | ||
|
6
|
6
7041960
Shock-rr,cds
|
7041960 |
— | ||
|
7
|
7
5134321 Bolt-pivot |
5134321 |
US $23.94 |
||
|
8
|
8
5133166 Bushing-pivot,lh |
5133166 |
US $31.01 |
||
|
9
|
9
5434545 Bushing-lh,hybrid,blk |
5434545 |
US $9.85 |
||
|
10
|
10
7661046 Rivet-pop,3/16(,376-,500)(50) |
7661046 |
US $1.89 |
||
|
11
|
11
5432727 Guide,chain pad |
5432727 |
US $18.32 |
||
|
12
|
12
7080510 Fitting, zerk,90 degree |
7080510 |
US $7.68 |
||
|
13
|
13
7547082 Nut,hex,jam |
7547082 |
US $40.15 |
||
|
14
|
14
7556035 Washer,flat |
7556035 |
US $9.85 |
||
|
15
|
15
5434546 Bushing-rh,hybrid,blk |
5434546 |
US $10.83 |
||
|
16
|
16
5133167 Bushing-pivot,rh |
5133167 |
US $44.29 |
||
|
17
|
17
5247488 Brkt-bolt lock |
5247488 |
US $4.34 |
||
|
18
|
18
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
19
|
19
1580111
Arm asm,swing
Incl. 9,12,15; |
1580111 |
— | ||
|
20
|
20
7078572 Decal-"chain freeplay",hybrid |
7078572 |
US $1.89 |
||
|
21
|
21
5432854 Guard,chain |
5432854 |
US $35.67 |
||
|
22
|
22
7515304 Screw-flanged |
7515304 |
US $3.75 |
||
|
23
|
23
5332828 Bushing |
5332828 |
US $7.18 |
||
|
24
|
24
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
25
|
25
7542321 Nut,flange(10) |
7542321 |
US $1.89 |
||
|
26
|
26
7555883 Washer |
7555883 |
US $2.98 |
||
|
27
|
27
7547066 Nut-7/16-20,nylok,y (10) |
7547066 |
US $39.40 |
||
|
28
|
28
7170915
Decal-hitch,850 lbs,
|
7170915 |
— | ||
|
29
|
29
2200472
Kit, hitch
Incl. 27-30; |
2200472 |
— | ||
| replacement | |||||
|
29
|
29
2873036 Hitch, atv, chain drvnIncl. 27-30; |
2873036 |
US $40.08 |
||
|
30
|
30
7512576 Bolt |
7512576 |
US $6.69 |
||
|
31
|
31
7515438 Bolt |
7515438 |
US $3.94 |
||
|
32
|
32
7517761 Screw 3/8-24x2,5hx/cp gr8-y |
7517761 |
US $3.75 |
||
