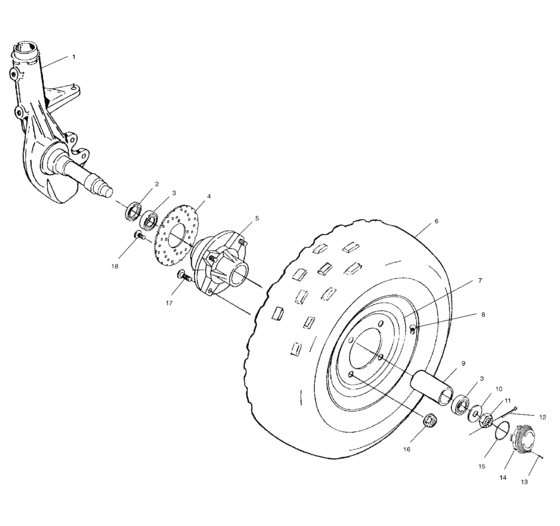

Front wheel (A03CA32AA) Diagram Polaris TRAIL BOSS 330
- Model code
- A03CA32AA
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
3610020 Seal,front hub |
3610020 |
US $19.69 |
||
|
3
|
3
3513519
Bearing, ball
|
3513519 |
— | ||
|
4
|
4
5243675
Disc, brake
If built before 7/31/02; |
5243675 |
— | ||
|
4
|
4
5246832
Disc, brake
If built after 7/31/02; |
5246832 |
— | ||
|
5
|
5
5132627 Hub-wheel 2wd,machined |
5132627 |
US $93.14 |
||
|
6
|
6
5412324 Tire-23x7-10,ttn 489,2 str__uu23x7-10; |
5412324 |
US $176.65 |
||
|
7
|
7
1520175-133
Rim,frt,white
AA; |
1520175-133 |
— | ||
|
7
|
7
1520175-117
Rim,frt,(silver)
AB; |
1520175-117 |
— | ||
|
8
|
8
1525017 Valve, rim |
1525017 |
US $6.56 |
||
|
9
|
9
5010256 Spacer, hub,front |
5010256 |
US $11.11 |
||
|
10
|
10
7555721 Washer(10) |
7555721 |
US $5.25 |
||
|
11
|
11
7542712 Nut |
7542712 |
US $11.36 |
||
|
12
|
12
7661407 Cotter pin |
7661407 |
US $3.64 |
||
|
13
|
13
7511866 Screw |
7511866 |
US $2.45 |
||
|
14
|
14
5433868 Cap,hub |
5433868 |
US $9.15 |
||
|
15
|
15
5410470 O ring (10) |
5410470 |
US $52.50 |
||
|
16
|
16
7547237 Nut-flange,two piece,3/8-24 |
7547237 |
US $39.40 |
||
|
17
|
17
7515513 Stud(10) * |
7515513 |
US $19.60 |
||
|
18
|
18
7512325 Bolt |
7512325 |
US $5.25 |
