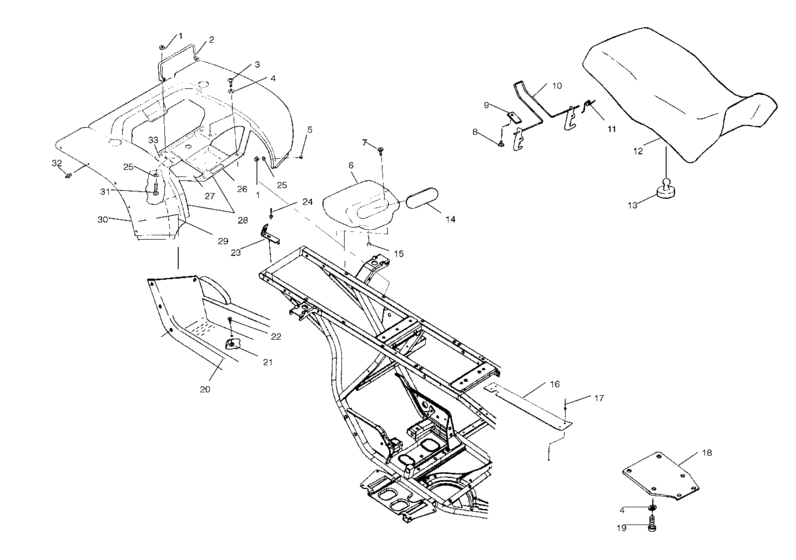

Rear cab and seat (A03CA32AA) Diagram Polaris TRAIL BOSS 330
- Model code
- A03CA32AA
- Year
- 2003
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
2
|
2
5246091 Retainer-seat latch |
5246091 |
US $13.20 |
||
|
3
|
3
7512242 Screw(10) |
7512242 |
US $0.79 |
||
|
4
|
4
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
5
|
5
7512085
Screw
|
7512085 |
— | ||
| replacement | |||||
|
5
|
5
7511989
Screw
|
7511989 |
— | ||
|
6
|
6
5434040 Box-tool |
5434040 |
US $40.58 |
||
|
7
|
7
7517375
Screw
|
7517375 |
— | ||
| replacement | |||||
|
7
|
7
7555748 Washer |
7555748 |
US $2.45 |
||
|
8
|
8
7621403 Blind rivet(50) |
7621403 |
US $0.79 |
||
|
9
|
9
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
10
|
10
1040387 Latch,seat |
1040387 |
US $37.63 |
||
|
11
|
11
7041370 Spring, latch |
7041370 |
US $8.17 |
||
|
12
|
12
2682957-320
Asm-seat
Incl. 8-13; AA; |
2682957-320 |
— | ||
|
12
|
12
2682958-320
Cover-seat,slv
AA; |
2682958-320 |
— | ||
|
12
|
12
2682957-070
Asm., seat, black
Incl. 8-13; AB; |
2682957-070 |
— | ||
|
12
|
12
2682958-070
Covering, seat, black
AB; |
2682958-070 |
— | ||
|
13
|
13
5412067 Bumper-rubber |
5412067 |
US $2.98 |
||
|
14
|
14
5431787 Cover, toolbox |
5431787 |
US $17.24 |
||
|
15
|
15
5410896 Cap,drain (10) |
5410896 |
US $3.75 |
||
|
16
|
16
5241403-067
Guard, clutch
|
5241403-067 |
— | ||
|
17
|
17
7661637 Rivet,interlock,z(50) * |
7661637 |
US $0.79 |
||
|
18
|
18
5432763 Guard,rock |
5432763 |
US $128.21 |
||
|
19
|
19
7515179 Screw |
7515179 |
US $2.98 |
||
|
20
|
20
5431771-070
Footwell, black, lh
|
5431771-070 |
— | ||
| replacement | |||||
|
20
|
20
5432056-070
Footwell, black, lh
|
5432056-070 |
— | ||
|
20
|
20
5434417-070 Footwell-cds,rh,nylon,svc,blk* |
5434417-070 |
US $244.23 |
||
|
21
|
21
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
22
|
22
7517376
Screw
|
7517376 |
— | ||
| replacement | |||||
|
22
|
22
7512279 Screw(10) * |
7512279 |
US $0.79 |
||
|
23
|
23
5245898
Mount, cab, rear
|
5245898 |
— | ||
|
24
|
24
7661637 Rivet,interlock,z(50) * |
7661637 |
US $0.79 |
||
|
25
|
25
7555792 Washer |
7555792 |
US $2.45 |
||
|
26
|
26
7170007
Decal,carburetor/filter
|
7170007 |
— | ||
|
27
|
27
5811087
Foil,(6x1)
|
5811087 |
— | ||
|
28
|
28
5811106 Foil,front |
5811106 |
US $7.09 |
||
|
29
|
29
5811111 Foil |
5811111 |
US $28.58 |
||
|
30
|
30
5432117-341
Cab-rear,sonic blu met **
AA; |
5432117-341 |
— | ||
|
30
|
30
5432117-424
Cab-rear,gen 4,wine invasion
AB; |
5432117-424 |
— | ||
|
31
|
31
7511930 Screw(10) |
7511930 |
US $0.79 |
||
|
32
|
32
7081040 Rivet-plastic,r-lock,,197 dia ( |
7081040 |
US $5.69 |
||
|
33
|
33
5811107 Foil,rear |
5811107 |
US $5.11 |
||
