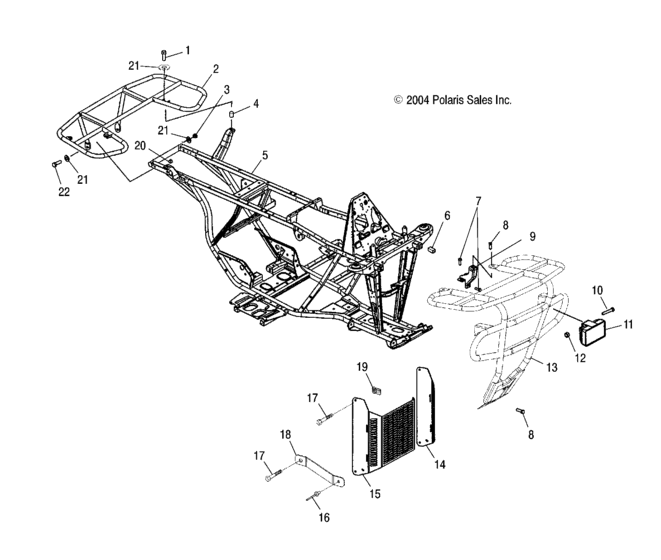

Bumper and rack mounting (A05CA32AA/AB/AC/FA) Diagram Polaris TRAIL BOSS 330
- Model code
- A05CA32AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7517977
Bolt-5/16-18x2,25 flg tap/r-y
|
7517977 |
— | ||
|
2
|
2
1014039-385
Weld-rear rack,slv
|
1014039-385 |
— | ||
|
3
|
3
5432831 Plug,endcap,ribbed |
5432831 |
US $3.75 |
||
|
4
|
4
5334092 Spacer-,375x,75x1,56,b |
5334092 |
US $7.18 |
||
|
5
|
5
1014658-067
Main frame,blk
|
1014658-067 |
— | ||
|
6
|
6
5810467 Plug, frame |
5810467 |
US $6.60 |
||
|
7
|
7
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
8
|
8
7515399 Screw(10) * |
7515399 |
US $6.13 |
||
|
9
|
9
1013744-067 Weld-support rack,front,lh,blk |
1013744-067 |
US $138.64 |
||
|
9
|
9
1013746-067 Weld-support,rack,front,rh,blk |
1013746-067 |
US $114.99 |
||
|
10
|
10
7515189 Screw(10) *AA;AB; |
7515189 |
US $1.89 |
||
|
11
|
11
2410285
Asm-headlight,30/30w,top mnt
AA;AB; |
2410285 |
— | ||
|
11
|
11
4030061 Bulb,h/l,30/30 w, |
4030061 |
US $38.38 |
||
|
12
|
12
7542122 Nut-nylok(10)AA;AB; |
7542122 |
US $26.30 |
||
|
13
|
13
1014483-385
Bumper, front
|
1014483-385 |
— | ||
|
14
|
14
5248297-067
Shield-radiator side,lh,blk
|
5248297-067 |
— | ||
|
15
|
15
5248298-067 Shield-radiator side,rh,blk |
5248298-067 |
US $28.58 |
||
|
16
|
16
7621472 Rivet(50) * |
7621472 |
US $98 |
||
|
17
|
17
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
18
|
18
5247919 Brkt-grill mount |
5247919 |
US $5.50 |
||
|
19
|
19
7670096 Nut (10) |
7670096 |
US $1.77 |
||
|
20
|
20
7542324 Nut,nylok(10) |
7542324 |
US $26.30 |
||
|
21
|
21
7558402 Washer,flat(10) |
7558402 |
US $18.70 |
||
|
22
|
22
7512329 Bolt |
7512329 |
US $4.59 |
