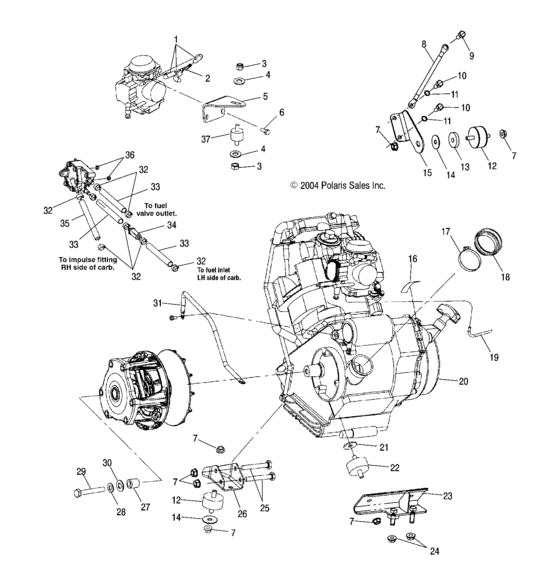

Engine mounting (A05CA32AA/AB/AC/FA) Diagram Polaris TRAIL BOSS 330
- Model code
- A05CA32AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
8450003-1525 Line,fuel,1/4 id(1525 cm,) |
8450003-1525 |
US $85.45 |
||
|
2
|
2
7052075 Fitting, tee |
7052075 |
US $7.68 |
||
|
3
|
3
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
4
|
4
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
||
|
5
|
5
5247946 Brkt-carb mnt,pltd |
5247946 |
US $12.20 |
||
|
6
|
6
3084205 Asm,,screw & washer(10) |
3084205 |
US $5.04 |
||
|
7
|
7
7547108 Nut |
7547108 |
US $2.98 |
||
|
8
|
8
4010132 Cable,gnd-engine |
4010132 |
US $30.54 |
||
|
9
|
9
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
10
|
10
7512315 Bolt |
7512315 |
US $2.98 |
||
|
11
|
11
7552901 Washer,spring lock(10) |
7552901 |
US $39.40 |
||
|
12
|
12
3021181
Mount,rubber,engine,45 duro
|
3021181 |
— | ||
|
13
|
13
5430802 Insulator,motor mt, |
5430802 |
US $7.09 |
||
|
14
|
14
7555823 Washer |
7555823 |
US $6.56 |
||
|
15
|
15
5247344 Brkt-engine mnt top,plated |
5247344 |
US $5.64 |
||
|
16
|
16
7172562
Decal-drain recoil
|
7172562 |
— | ||
|
17
|
17
7080511 Clamp, narrow band |
7080511 |
US $1.75 |
||
|
18
|
18
5411721 Boot-clutch intake |
5411721 |
US $9.85 |
||
|
19
|
19
8360009-100
Line, fuel
|
8360009-100 |
— | ||
|
20
|
20
1202789
Engine, es320pfe103
|
1202789 |
— | ||
|
21
|
21
7555815 Washer, flat |
7555815 |
US $3.26 |
||
|
22
|
22
3110046
Mount, rubber, front
|
3110046 |
— | ||
|
23
|
23
1013413-067
Mount,engine,rear,blk
|
1013413-067 |
— | ||
|
24
|
24
7547089 Nut-3/8-16 flg lock-y |
7547089 |
US $2.45 |
||
|
25
|
25
7515417 Screw |
7515417 |
US $3.94 |
||
|
26
|
26
5247342 Mount-lower front eng,pltd |
5247342 |
US $16.52 |
||
|
27
|
27
5430261 Bushing |
5430261 |
US $9.10 |
||
|
28
|
28
7575202 Washer lock |
7575202 |
US $6.56 |
||
|
29
|
29
7512566 Bolt |
7512566 |
US $12.79 |
||
|
30
|
30
5210748 Washer(10) |
5210748 |
US $5.25 |
||
|
31
|
31
4010095
Cable,batt/eng,,blk,
|
4010095 |
— | ||
|
32
|
32
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
33
|
33
8450103-600
Line, fuel
|
8450103-600 |
— | ||
|
34
|
34
2530009 Filter,small,in-line,(10) |
2530009 |
US $6.56 |
||
|
35
|
35
8450040-600 Line fuel,1/4 id(600 cm,) |
8450040-600 |
US $65.99 |
||
|
36
|
36
7546601
Nut, nylok(10)
|
7546601 |
— | ||
|
37
|
37
3110050 Mount,carburetor |
3110050 |
US $15.73 |
