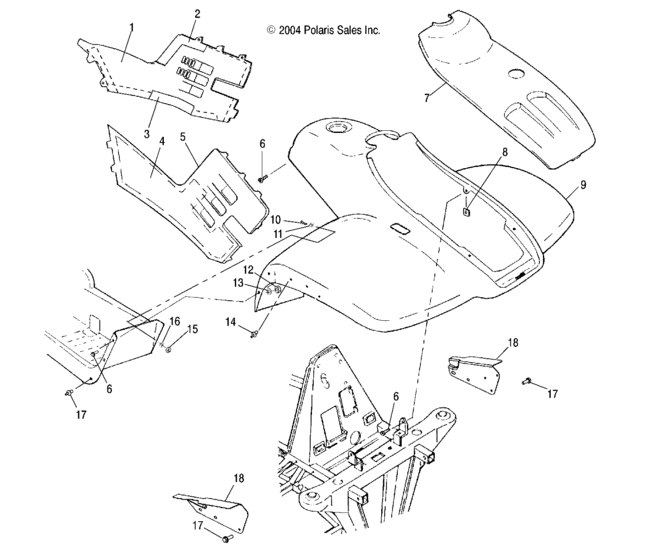

Front cab (A05CA32AA/AB/AC/FA) Diagram Polaris TRAIL BOSS 330
- Model code
- A05CA32AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2632284-053 Asm-panel/foam,lh,yellow **AA;FA; |
2632284-053 |
US $137.88 |
||
|
1
|
1
2632284-070 Panel asm,foam,lh,blkAB; |
2632284-070 |
US $127.05 |
||
|
1
|
1
2632284-177 Panel/foam asm,lh,blk metAC; |
2632284-177 |
US $127.05 |
||
|
2
|
2
5811797 Foam-lh |
5811797 |
US $9.15 |
||
|
3
|
3
5812138 Foam-lh |
5812138 |
US $4.94 |
||
|
4
|
4
5812484 Foil-rh |
5812484 |
US $12.20 |
||
|
5
|
5
2632633-053
Panel/foil,rh,med ylw
AA;FA; |
2632633-053 |
— | ||
|
5
|
5
2632633-070 Panel asm,foil,rh,blkAB; |
2632633-070 |
US $142.80 |
||
|
5
|
5
2632633-177
Panel/foil asm,rh,blk met
AC; |
2632633-177 |
— | ||
|
6
|
6
7517916 Scr-1/4-20x3/4-tr/tx/tap-m |
7517916 |
US $5.22 |
||
|
7
|
7
5435110-070
Cover-front,blk
AA;FA; |
5435110-070 |
— | ||
|
7
|
7
5435110-293 Cover-front,indy red **AB; |
5435110-293 |
US $86.68 |
||
|
7
|
7
5435110-177
Cover-front,blk met
AC; |
5435110-177 |
— | ||
|
8
|
8
7670057 Nut, speed(10) * |
7670057 |
US $2.63 |
||
|
9
|
9
2632992-070 Cab asm,front,svc,blkIncl. Warning Decals;AA;FA; |
2632992-070 |
US $349.62 |
||
|
9
|
9
2632992-293
Cab asm,front,svc,red
Incl. Warning Decals;AB; |
2632992-293 |
— | ||
|
9
|
9
2632992-499
Asm-cab,front,svc,s,sonic blue
Incl. Warning Decals;AC; |
2632992-499 |
— | ||
|
10
|
10
7512085
Screw
|
7512085 |
— | ||
| replacement | |||||
|
10
|
10
7511989
Screw
|
7511989 |
— | ||
|
11
|
11
7555783 Washer,flat |
7555783 |
US $2.45 |
||
|
12
|
12
7542122 Nut-nylok(10) |
7542122 |
US $26.30 |
||
|
13
|
13
7555859 Washer, flat(10) |
7555859 |
US $39.40 |
||
|
14
|
14
7081040 Rivet-plastic,r-lock,,197 dia ( |
7081040 |
US $5.69 |
||
|
15
|
15
7541925
Nut, nylok 10-24 y
|
7541925 |
— | ||
|
16
|
16
7555792 Washer |
7555792 |
US $2.45 |
||
|
17
|
17
7670088 Clip,plastic dart,nylon |
7670088 |
US $2.45 |
||
|
18
|
18
5245394-067 Shield-splash,lh,blk |
5245394-067 |
US $19.30 |
||
|
18
|
18
5245533-067 Shield-splash,rh,blk |
5245533-067 |
US $19.30 |
||
