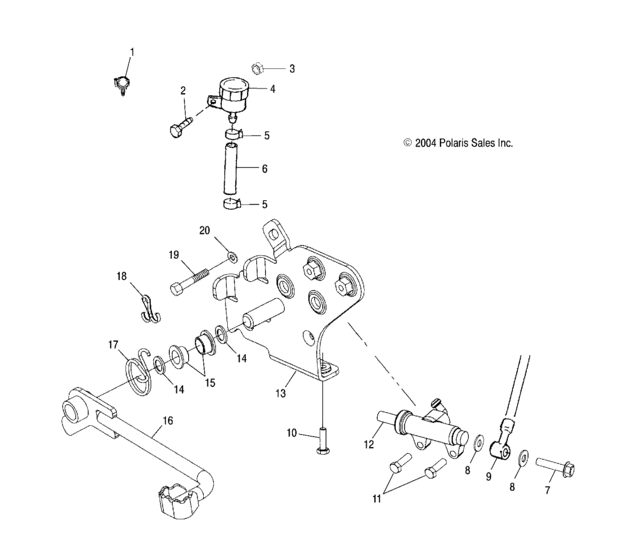

Rear brake master cylinder (A05CA32AA/AB/AC/FA) Diagram Polaris TRAIL BOSS 330
- Model code
- A05CA32AA
- Year
- 2005
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7670102 Clip |
7670102 |
US $5.25 |
||
|
2
|
2
7512024 Screw |
7512024 |
US $2.45 |
||
|
3
|
3
7542153 Nut,nylok,flanged |
7542153 |
US $2.63 |
||
|
4
|
4
1930854 Reservoir asm,r,brake |
1930854 |
US $27.58 |
||
|
5
|
5
7080003 Clamp,hose(10) |
7080003 |
US $0.79 |
||
|
6
|
6
1910812 Hose-reservoir,1/4 id,19 in |
1910812 |
US $7.09 |
||
|
7
|
7
1910499 Bolt-banjo,10mmx1,00 |
1910499 |
US $7.68 |
||
|
8
|
8
5410988
Seal
|
5410988 |
— | ||
|
10
|
10
7515158 Screw |
7515158 |
US $2.98 |
||
|
11
|
11
7515179 Screw |
7515179 |
US $2.98 |
||
|
12
|
12
1910791 Asm-brake mstr cyl,foot,banjo |
1910791 |
US $187.11 |
||
|
13
|
13
1910764-067 Weld-brake mount,blk |
1910764-067 |
US $25.43 |
||
|
14
|
14
7555919 Washer |
7555919 |
US $6.21 |
||
|
15
|
15
5433189 Bushing-pedal pivot |
5433189 |
US $6.56 |
||
|
16
|
16
1910767-067 Weld-brake pedal,cds,blk |
1910767-067 |
US $78.79 |
||
|
17
|
17
7041750 Spring-torsion,brake |
7041750 |
US $9.85 |
||
|
18
|
18
7661401 Pin,cotter(10) |
7661401 |
US $3.94 |
||
|
19
|
19
7512232 Bolt(10) |
7512232 |
US $26.30 |
||
|
20
|
20
7558301 Washer, flat(10) * |
7558301 |
US $0.79 |
