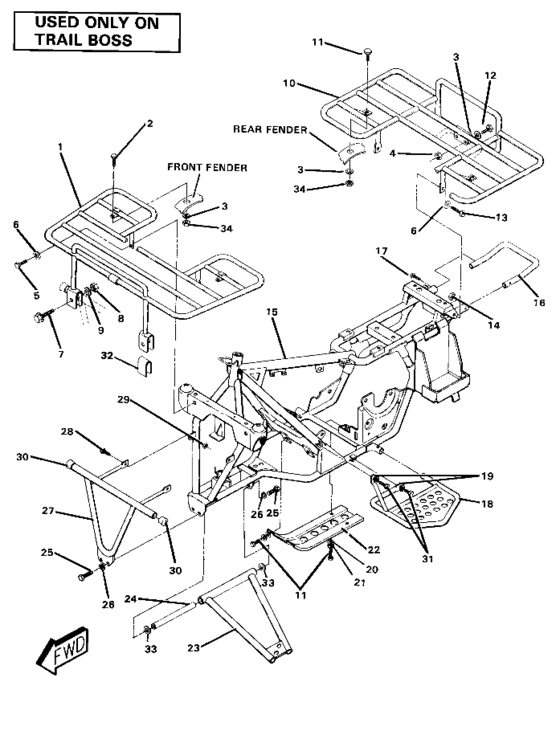

Frame assembly with racks-trail boss Diagram Polaris TRAIL BOSS
- Model code
- W867627
- Year
- 1986
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2670088
Rack,front
|
2670088 |
— | ||
| replacement | |||||
|
1
|
1
2870719
New Genuine Part
|
2870719 |
— | ||
|
2
|
2
7512269 Bolt10; |
7512269 |
US $1.89 |
||
|
3
|
3
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
4
|
4
7542124 Nut10; |
7542124 |
US $1.89 |
||
|
5
|
5
7512310 Screw(10)10; |
7512310 |
US $0.79 |
||
|
6
|
6
7558403 Washer,wrought10; |
7558403 |
US $2.45 |
||
|
7
|
7
7515319 Bolt10; |
7515319 |
US $3.26 |
||
|
8
|
8
7542327 Nut, nylok10; |
7542327 |
US $2.45 |
||
|
10
|
10
2670089
Rack, rear, weld
|
2670089 |
— | ||
|
12
|
12
7512270
Bolt
|
7512270 |
— | ||
|
15
|
15
1011603
Frame,,weld.
No Longer Available; 4WHL; |
1011603 |
— | ||
|
16
|
16
5224262
Bumper, rear
|
5224262 |
— | ||
|
17
|
17
7512252
Screw
10; |
7512252 |
— | ||
|
18
|
18
1040109
Pad, foot, lh
|
1040109 |
— | ||
|
18
|
18
1040110
Pad, foot, rh
|
1040110 |
— | ||
|
19
|
19
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
21
|
21
7552801 Washer, spring lock(10)10; |
7552801 |
US $2.45 |
||
|
22
|
22
5220615
Guard, rock
|
5220615 |
— | ||
|
23
|
23
1580008
A-frame,lh weld
No Longer Available; |
1580008 |
— | ||
|
23
|
23
1580009
A-frame,rh weld.
No Longer Available; |
1580009 |
— | ||
|
24
|
24
5332801 Bushing, a frame |
5332801 |
US $26.41 |
||
|
25
|
25
7515458
Bolt
10; |
7515458 |
— | ||
| replacements | |||||
|
25
|
25
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
25
|
25
7512492-SWED
New Genuine Part
10; |
7512492-SWED |
— | ||
|
26
|
26
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
27
|
27
2670086
Bumper
|
2670086 |
— | ||
| replacement | |||||
|
27
|
27
2670086-067
New Genuine Part
|
2670086-067 |
— | ||
|
28
|
28
7515481 Bolt10; |
7515481 |
US $3.26 |
||
|
29
|
29
7542439 Nut,nylok(10)10; |
7542439 |
US $1.96 |
||
|
30
|
30
5430823
Cap, bumper, 4 whl.
10; |
5430823 |
— | ||
| replacement | |||||
|
30
|
30
5432047 Plug,endcap10; |
5432047 |
US $6.11 |
||
|
31
|
31
7512315 Bolt10; |
7512315 |
US $2.98 |
||
|
32
|
32
5850063
Pad
No Longer Available; |
5850063 |
— | ||
|
33
|
33
5020466
Shaft, a arm
|
5020466 |
— | ||
|
34
|
34
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
