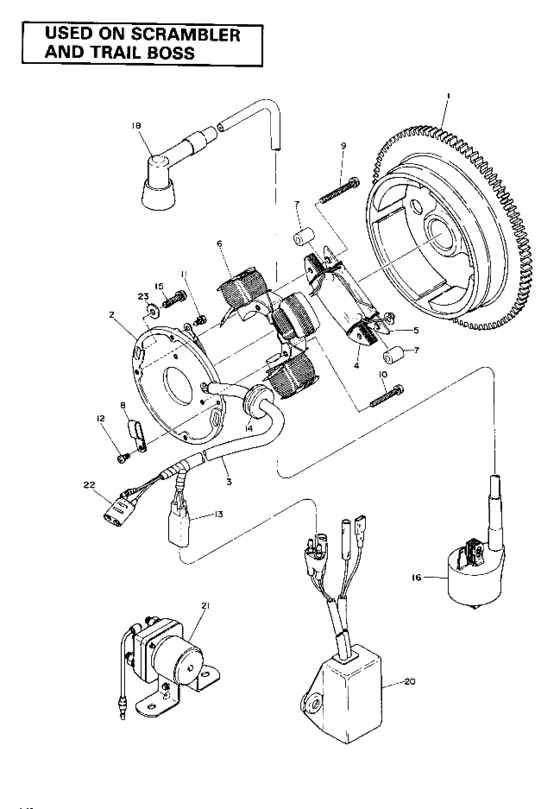

Magneto assembly Diagram Polaris TRAIL BOSS
- Model code
- W867627
- Year
- 1986
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083632
Flywheel,w/ring gear
|
3083632 |
— | ||
|
2
|
2
3083634 Plate, coil |
3083634 |
US $91.60 |
||
|
3
|
3
3083762
Harness, wire
|
3083762 |
— | ||
|
4
|
4
3083636
Coil, exciting
|
3083636 |
— | ||
|
5
|
5
3083637
Coil, pulser
|
3083637 |
— | ||
|
6
|
6
3083638
Stator 1
|
3083638 |
— | ||
|
7
|
7
3083639
Collar
|
3083639 |
— | ||
|
8
|
8
3081146 Clamp |
3081146 |
US $1.49 |
||
|
9
|
9
3081588
Screw & washer
|
3081588 |
— | ||
|
10
|
10
3083640
Screw&washer
|
3083640 |
— | ||
| replacement | |||||
|
10
|
10
3083736 Screw&washer asm,(10) |
3083736 |
US $1.89 |
||
|
11
|
11
3081256 Screw&washer asm(10)10; |
3081256 |
US $1.49 |
||
|
12
|
12
3081260 Asm,,screw&washer(10)10; |
3081260 |
US $1.89 |
||
|
13
|
13
3083150 Coupler-3p |
3083150 |
US $13.09 |
||
|
14
|
14
3083773
Grommet
|
3083773 |
— | ||
|
15
|
15
3083774
Screw&washer
|
3083774 |
— | ||
| replacement | |||||
|
15
|
15
3086788 Screw & washer |
3086788 |
US $1.77 |
||
|
16
|
16
3083642
Coil, ignition
|
3083642 |
— | ||
|
18
|
18
3083766
Cdi system
|
3083766 |
— | ||
|
20
|
20
3083644
Coupler
2P; |
3083644 |
— | ||
|
21
|
21
3083357 Washer |
3083357 |
US $2.98 |
||
