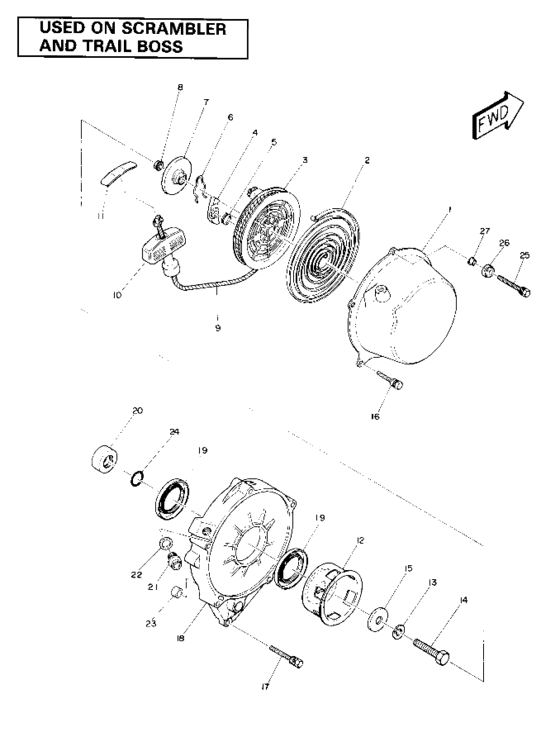

Recoil starter assembly Diagram Polaris TRAIL BOSS
- Model code
- W867627
- Year
- 1986
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083654
Case, starter
No Longer Available; |
3083654 |
— | ||
|
2
|
2
3083376 Spring, spiral * |
3083376 |
US $56.14 |
||
|
3
|
3
3083377 Asm,,reel |
3083377 |
US $63.98 |
||
|
4
|
4
3083378 Ratchet |
3083378 |
US $16.24 |
||
|
5
|
5
3083463 Spring, return |
3083463 |
US $5.25 |
||
|
6
|
6
3083379 Spring, friction |
3083379 |
US $19.69 |
||
|
7
|
7
3083464 Plate, friction |
3083464 |
US $19.30 |
||
|
8
|
8
3083381 Nut, flange(10)10; |
3083381 |
US $0.79 |
||
|
8
|
8
3083657
Rope asm.
Item NotAvailable; Incl. 9-11; |
3083657 |
— | ||
|
9
|
9
3083658
Rope, starter
|
3083658 |
— | ||
| replacement | |||||
|
9
|
9
2870621 Rope,100 ft,nyl,starter |
2870621 |
US $44.77 |
||
|
10
|
10
3083659 Knob, starter |
3083659 |
US $43.72 |
||
|
11
|
11
3083660
Cap, knob
|
3083660 |
— | ||
|
12
|
12
3083661
Pulley, starting
No Longer Available; |
3083661 |
— | ||
|
13
|
13
3080281 Washer, spring(10)10; |
3080281 |
US $0.79 |
||
|
14
|
14
3083662
Bolt
|
3083662 |
— | ||
|
15
|
15
3083663 Washer |
3083663 |
US $3.26 |
||
|
16
|
16
3083664
Bolt&washer assy.
|
3083664 |
— | ||
|
17
|
17
3083665
Bolt&washer assy.
No Longer Available; |
3083665 |
— | ||
|
18
|
18
3083764
Housing
No Longer Available; Incl. 19,23;Magneto; |
3083764 |
— | ||
|
19
|
19
3083742
Seal, oil
|
3083742 |
— | ||
|
20
|
20
3083765
Collar
|
3083765 |
— | ||
|
21
|
21
3083453 Plug |
3083453 |
US $1.66 |
||
| replacement | |||||
|
21
|
21
3086749
Plug
|
3086749 |
— | ||
|
22
|
22
3082717 Gasket-alum(10)10;Aluminum; |
3082717 |
US $1.49 |
||
|
23
|
23
3083669 Bushing, starterStarter; |
3083669 |
US $20.28 |
||
|
24
|
24
3083744
O ring
|
3083744 |
— | ||
|
25
|
25
3083217
Bolt&washer
|
3083217 |
— | ||
| replacement | |||||
|
25
|
25
3083729 Asm,,bolt&washer |
3083729 |
US $3.26 |
||
|
26
|
26
3083731 Mounting,rubber |
3083731 |
US $6.11 |
||
|
27
|
27
3083732
Collar
|
3083732 |
— | ||
