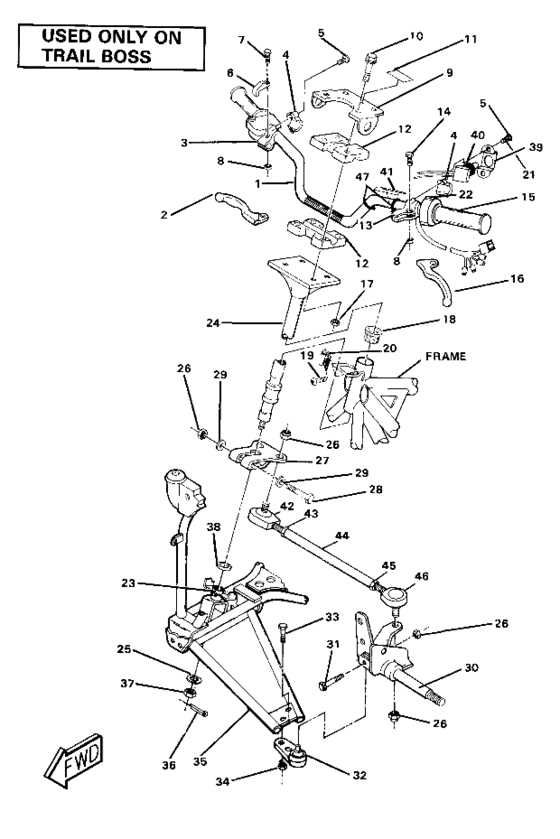

Steering assembly-trail boss Diagram Polaris TRAIL BOSS
- Model code
- W867627
- Year
- 1986
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5224261
Bar, handle
4/W; |
5224261 |
— | ||
| replacement | |||||
|
1
|
1
5242988-067 Tube,handlebar,blk4/W; |
5242988-067 |
US $68.93 |
||
|
2
|
2
2050004 Lever, brake, rh |
2050004 |
US $22.51 |
||
|
3
|
3
2050002
Holder, lever
|
2050002 |
— | ||
|
4
|
4
2050005
Holder,lever,low.1
|
2050005 |
— | ||
|
5
|
5
2010047
Screw&washer
|
2010047 |
— | ||
|
6
|
6
2050037
Lever lock
|
2050037 |
— | ||
|
7
|
7
2050021
Bolt lever
|
2050021 |
— | ||
|
8
|
8
2050009
Nut
|
2050009 |
— | ||
|
9
|
9
5220484
Bracket,h/l mt.
|
5220484 |
— | ||
|
10
|
10
7512272
Bolt
10; |
7512272 |
— | ||
|
11
|
11
7072244
Decal,oil level
No Longer Available; |
7072244 |
— | ||
|
12
|
12
5630187
Block,handlebar
|
5630187 |
— | ||
| replacement | |||||
|
12
|
12
5630187-067 Block,handlebar,blk |
5630187-067 |
US $31.90 |
||
|
13
|
13
2050020
Holder, lever
|
2050020 |
— | ||
|
14
|
14
2050008
Bolt
|
2050008 |
— | ||
|
15
|
15
5410416
Grip, handle bar
|
5410416 |
— | ||
| replacement | |||||
|
15
|
15
5431030
Grip, handlebar
|
5431030 |
— | ||
|
16
|
16
2050019
Lever, brake, lh
No Longer Available; |
2050019 |
— | ||
|
17
|
17
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
18
|
18
5430856
Bushing,steering
|
5430856 |
— | ||
|
19
|
19
7510503
Screw
|
7510503 |
— | ||
|
20
|
20
7080325
Clamp, loop
|
7080325 |
— | ||
|
21
|
21
2870681
Desc not_available
|
2870681 |
— | ||
|
22
|
22
4110063
Switch,hi-lo/start
|
4110063 |
— | ||
|
23
|
23
7080220
Fitting-lube.
10; |
7080220 |
— | ||
| replacement | |||||
|
23
|
23
7080561 Fitting,lub/ven10; |
7080561 |
US $3.94 |
||
|
24
|
24
1843009
Post, steering
|
1843009 |
— | ||
| replacement | |||||
|
24
|
24
1843020-067 Post,steering,blk. |
1843020-067 |
US $163.21 |
||
|
25
|
25
7555721 Washer(10)10; |
7555721 |
US $5.25 |
||
|
26
|
26
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
27
|
27
5220546
Frog,steering
|
5220546 |
— | ||
|
28
|
28
7515433 Screw(10) |
7515433 |
US $26.30 |
||
| replacement | |||||
|
28
|
28
7517583 Scr-3/8-24x2 hx/cp gr5-y-sp |
7517583 |
US $3.57 |
||
|
29
|
29
7555720
Washer
10; |
7555720 |
— | ||
| replacement | |||||
|
29
|
29
7555806 Washer,flat(10)10; |
7555806 |
US $13.10 |
||
|
30
|
30
1821023
Spindle, lh
|
1821023 |
— | ||
| replacement | |||||
|
30
|
30
1821023-067
New Genuine Part
|
1821023-067 |
— | ||
|
30
|
30
1821024
Spindle, rh
|
1821024 |
— | ||
| replacement | |||||
|
30
|
30
1821024-067
New Genuine Part
|
1821024-067 |
— | ||
|
31
|
31
7515425
Bolt
10; |
7515425 |
— | ||
| replacement | |||||
|
31
|
31
7512404 Bolt10; |
7512404 |
US $6.56 |
||
|
32
|
32
7060133
Ball joint
|
7060133 |
— | ||
|
33
|
33
7515458
Bolt
10; |
7515458 |
— | ||
| replacements | |||||
|
33
|
33
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
33
|
33
7512492-SWED
New Genuine Part
10; |
7512492-SWED |
— | ||
|
34
|
34
7542449 Nut,flange lock10; |
7542449 |
US $2.98 |
||
|
35
|
35
1580008
A-frame,lh weld
No Longer Available; |
1580008 |
— | ||
|
35
|
35
1580009
A-frame,rh weld.
No Longer Available; |
1580009 |
— | ||
|
36
|
36
7661207
Pin, cotter
|
7661207 |
— | ||
|
37
|
37
7542712 Nut10; |
7542712 |
US $11.36 |
||
|
38
|
38
7556306
Bushing,mach.
|
7556306 |
— | ||
|
39
|
39
5222103
Bracket
|
5222103 |
— | ||
|
40
|
40
4110069
Switch,override
|
4110069 |
— | ||
| replacement | |||||
|
40
|
40
4110072
Switch,o'ride,rev,limit
|
4110072 |
— | ||
|
41
|
41
7072345
Decal,o`ride switch
No Longer Available; |
7072345 |
— | ||
|
42
|
42
7060132
Rod end, rh
|
7060132 |
— | ||
| replacement | |||||
|
42
|
42
2200271
Kit,tie rod end,(atv)
|
2200271 |
— | ||
|
43
|
43
7542401 Nut,hex,rh(10)10; |
7542401 |
US $0.79 |
||
|
44
|
44
5010209
Rod, tie
|
5010209 |
— | ||
|
45
|
45
7542424 Nut,lh (10) |
7542424 |
US $0.79 |
||
|
46
|
46
7060131
Rod end, lh
|
7060131 |
— | ||
| replacement | |||||
|
46
|
46
2200271
Kit,tie rod end,(atv)
|
2200271 |
— | ||
|
47
|
47
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
