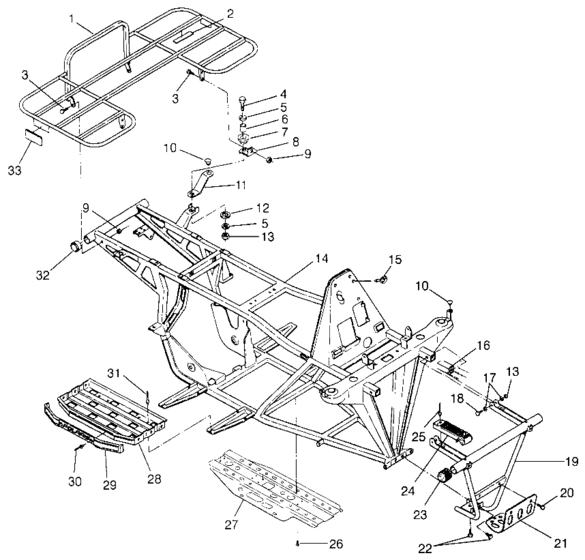

Bumper and rack mounting (Trail Boss W968527) Diagram Polaris TRAIL BOSS
- Model code
- W968527
- Year
- 1996
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2670136-067
Rack,rear,blk,
|
2670136-067 |
— | ||
|
2
|
2
5810455 Pad |
5810455 |
US $1.66 |
||
|
3
|
3
7512282 Bolt, black(10)10; |
7512282 |
US $1.89 |
||
|
4
|
4
7515304 Screw-flanged10; |
7515304 |
US $3.75 |
||
|
5
|
5
7555716 Washer10; |
7555716 |
US $2.45 |
||
|
6
|
6
5010192 Bushing |
5010192 |
US $4.94 |
||
|
7
|
7
5410241
Dampener, vibration
|
5410241 |
— | ||
|
8
|
8
5220899-067
Brkt,lh support rack
|
5220899-067 |
— | ||
| replacement | |||||
|
8
|
8
5243468-067
Brkt,support rack,lh,blk
|
5243468-067 |
— | ||
|
8
|
8
5220901-067
Brkt,rh support rack
|
5220901-067 |
— | ||
| replacement | |||||
|
8
|
8
5243469-067
Brkt,support rack,rh,blk
|
5243469-067 |
— | ||
|
9
|
9
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
10
|
10
5410012 Plug,rubber-hole,,5dia10; |
5410012 |
US $10.36 |
||
| replacement | |||||
|
10
|
10
5411426
Bumper,rubber-hole,.5dia
10; |
5411426 |
— | ||
|
11
|
11
5220902-067 Support,r,fender |
5220902-067 |
US $36.61 |
||
|
12
|
12
5410436 Washer,rubber (10) |
5410436 |
US $1.89 |
||
|
13
|
13
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
14
|
14
1040493-067 Frame,main,blk, |
1040493-067 |
US $1,087.19 |
||
|
15
|
15
7080409 Clamp,wire routing10; |
7080409 |
US $2.98 |
||
|
16
|
16
5810467 Plug, frame |
5810467 |
US $6.60 |
||
|
17
|
17
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
18
|
18
7512329 Bolt10; |
7512329 |
US $4.59 |
||
|
19
|
19
2670106-067
Bumper,frt,
BLACK; |
2670106-067 |
— | ||
|
20
|
20
7512208 Screw10; |
7512208 |
US $3.26 |
||
|
21
|
21
5220981
Skid-plate,fr,bumper
|
5220981 |
— | ||
|
22
|
22
7512399 Screw10; |
7512399 |
US $3.94 |
||
|
23
|
23
5431013-179 Cap,bumper,fr,aqua, |
5431013-179 |
US $15.86 |
||
|
24
|
24
5431023 Cover,brkt,bumper mt, |
5431023 |
US $13.20 |
||
|
25
|
25
7621229 Rivet(50)50; |
7621229 |
US $0.79 |
||
|
26
|
26
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
27
|
27
5240560-067 Guard,rock,blk, |
5240560-067 |
US $121.31 |
||
|
28
|
28
1040274-117 Footpad,lh,silver |
1040274-117 |
US $101.45 |
||
|
28
|
28
1040417-067
Footpad,rh,blk,
|
1040417-067 |
— | ||
|
29
|
29
5431484
Trim, footrest
|
5431484 |
— | ||
|
30
|
30
7661825 Rivet,(50)50; |
7661825 |
US $0.79 |
||
|
31
|
31
7661638 Rivet,interlock,b(50)50; |
7661638 |
US $0.79 |
||
|
32
|
32
5432047 Plug,endcap10; |
5432047 |
US $6.11 |
||
|
33
|
33
2670133 Reflector asm,red |
2670133 |
US $9.45 |
||
