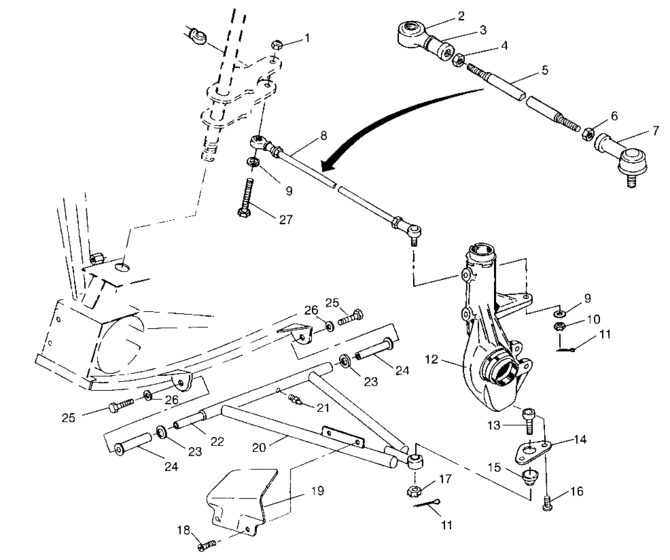

A-arm/strut mounting (4x4 300 W958130) Diagram Polaris TRAIL BOSS 4X4 300
- Model code
- W958130
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
2
|
2
5410540 Boot, seal, rod end |
5410540 |
US $8.87 |
||
|
3
|
3
7060149
Rod end, rh
|
7060149 |
— | ||
| replacement | |||||
|
3
|
3
1822179 Rod end asm,/seal boot |
1822179 |
US $51.21 |
||
|
4
|
4
7542401 Nut,hex,rh(10)10; |
7542401 |
US $0.79 |
||
|
5
|
5
5020528
Tie rod
|
5020528 |
— | ||
|
6
|
6
7546902 Nut, lh, 10 mm,10; |
7546902 |
US $3.26 |
||
|
7
|
7
7060147 Rod end |
7060147 |
US $51.21 |
||
|
8
|
8
1822310
Tierod asm,relube
|
1822310 |
— | ||
|
9
|
9
7555806 Washer,flat(10)10; |
7555806 |
US $13.10 |
||
|
10
|
10
7546904 Nut, castle(10)10; |
7546904 |
US $3.26 |
||
|
11
|
11
7661203 Pin,cotter(10)10; |
7661203 |
US $26.30 |
||
|
13
|
13
7080364
Ball joint
|
7080364 |
— | ||
| replacement | |||||
|
13
|
13
7080927
Joint, ball
|
7080927 |
— | ||
|
14
|
14
5211121 Brkt, ball joint |
5211121 |
US $34.46 |
||
|
15
|
15
5410548
Boot, rubber
|
5410548 |
— | ||
| replacement | |||||
|
15
|
15
5412658 Boot-balljoint,greaseless,strt |
5412658 |
US $6.56 |
||
|
16
|
16
7512284 Bolt, socket(10)10; |
7512284 |
US $1.96 |
||
|
17
|
17
7542438 Nut, castle(10)10; |
7542438 |
US $2.63 |
||
|
18
|
18
7512084 Screw(10)10; |
7512084 |
US $19.60 |
||
|
19
|
19
5431150
Shield,lh cv joint
|
5431150 |
— | ||
| replacement | |||||
|
19
|
19
5431150-070
Shield-cv joint,lh,blk
|
5431150-070 |
— | ||
|
19
|
19
5431149
Shield,rh cv joint
|
5431149 |
— | ||
| replacement | |||||
|
19
|
19
5431149-070 Shield-cv joint,rh,blk |
5431149-070 |
US $19.30 |
||
|
20
|
20
2200481
Kit,a-frame,lh
Incl. 11, 21, 23-26; |
2200481 |
— | ||
|
20
|
20
2200482 Kit,a-frame,rhIncl. 11, 21, 23-26; |
2200482 |
US $165.43 |
||
|
21
|
21
7080433 Fitting,lubrication,threaded(1010; |
7080433 |
US $5.25 |
||
|
22
|
22
5020681
Shaft, a-arm
|
5020681 |
— | ||
|
23
|
23
5020677 Bushing,a-arm spacer(10)10; |
5020677 |
US $118.10 |
||
|
24
|
24
5431596
Bushing,a-arm,long.
|
5431596 |
— | ||
| replacement | |||||
|
24
|
24
5433066
Bushing, a-arm, long
|
5433066 |
— | ||
|
25
|
25
7515458
Bolt
10; |
7515458 |
— | ||
| replacements | |||||
|
25
|
25
7512492 Screw(10)10; |
7512492 |
US $39.40 |
||
|
25
|
25
7512492-SWED
New Genuine Part
10; |
7512492-SWED |
— | ||
|
26
|
26
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
27
|
27
7515507
Bolt
10; |
7515507 |
— | ||
| replacement | |||||
|
27
|
27
7515554 Screw10; |
7515554 |
US $14.09 |
||
