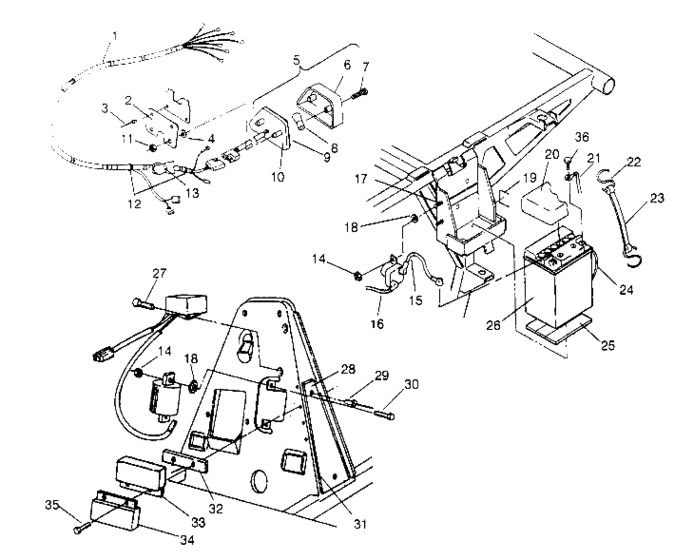

Electrical/taillight assembly (4x4 300 W958130) Diagram Polaris TRAIL BOSS 4X4 300
- Model code
- W958130
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2460498 Harness, main |
2460498 |
US $114.40 |
||
|
2
|
2
5211391-067 Isolator,taillight |
5211391-067 |
US $21.11 |
||
|
3
|
3
7621470 Rivet(50)50; |
7621470 |
US $1.89 |
||
|
4
|
4
7555916 Washer,nylon10; |
7555916 |
US $2.45 |
||
|
5
|
5
2432034 Tail light asm,Incl. 6-10; |
2432034 |
US $51.21 |
||
|
6
|
6
4032046 Lens,taillight |
4032046 |
US $18.32 |
||
|
7
|
7
4032029 Screw |
4032029 |
US $2.98 |
||
|
8
|
8
4030043 Bulb |
4030043 |
US $4.94 |
||
|
9
|
9
4032045 Gasket |
4032045 |
US $5.11 |
||
|
10
|
10
4032064 Backing,taillight |
4032064 |
US $81.76 |
||
|
11
|
11
7670054
Nut, push-on (10)
10; |
7670054 |
— | ||
|
12
|
12
7080138 Cable tie (10)10; |
7080138 |
US $26.30 |
||
|
13
|
13
2434012 Ckt,breaker,20 amp, |
2434012 |
US $45.69 |
||
|
14
|
14
7541925
Nut, nylok 10-24 y
10; |
7541925 |
— | ||
|
15
|
15
4010094 Cable,batt/solenoid,red |
4010094 |
US $30.54 |
||
|
16
|
16
4010064
Cable,solenoid/starter
|
4010064 |
— | ||
|
17
|
17
7512027 Screw(10) *10; |
7512027 |
US $19.60 |
||
|
18
|
18
7571602 Washer10; |
7571602 |
US $2.45 |
||
|
19
|
19
7072606
Decal, battery
No Longer Available; |
7072606 |
— | ||
|
20
|
20
5431769 Cover,battery |
5431769 |
US $13.20 |
||
|
21
|
21
4010095
Cable,batt/eng,,blk,
|
4010095 |
— | ||
|
22
|
22
7010032 Hook-battery strap(10)10; |
7010032 |
US $26.30 |
||
|
23
|
23
5410424
Strap, battery holddown
|
5410424 |
— | ||
|
24
|
24
2200190
Kit-tank vent
|
2200190 |
— | ||
|
25
|
25
5810290 Pad, battery |
5810290 |
US $6.11 |
||
|
26
|
26
4140006 Battery |
4140006 |
US $275.60 |
||
|
27
|
27
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
28
|
28
4040056 Board,terminal |
4040056 |
US $29.54 |
||
|
29
|
29
7621322
Rivet, pop(50)
50; |
7621322 |
— | ||
|
30
|
30
7512007 Bolt10; |
7512007 |
US $2.45 |
||
|
31
|
31
5431152
Shield,term.board
|
5431152 |
— | ||
|
32
|
32
5210650
Heat sink
|
5210650 |
— | ||
|
33
|
33
4060087
Rectifier, voltage
|
4060087 |
— | ||
|
34
|
34
4060085 Limiter,rev,speed |
4060085 |
US $101.45 |
||
|
35
|
35
7512018 Screw(10)10; |
7512018 |
US $0.79 |
||
|
36
|
36
2200361 Kit-battery bolt (short)SHORT;Short; |
2200361 |
US $1.77 |
