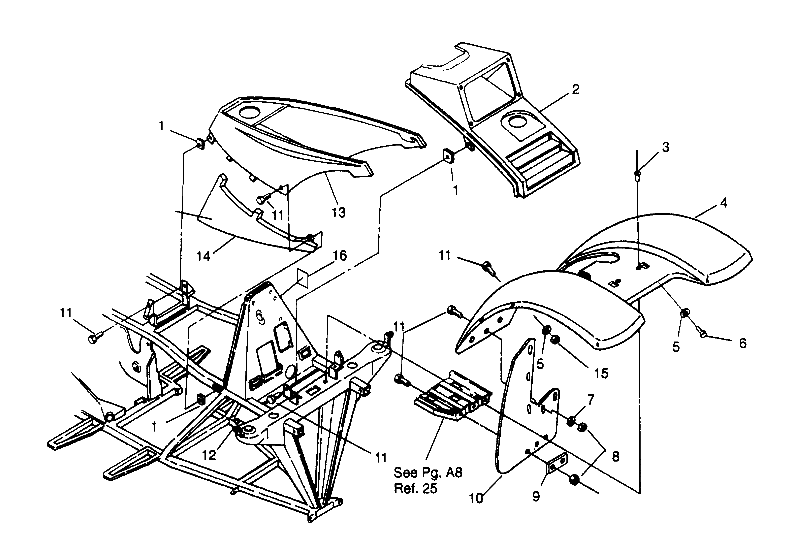

Front cab assembly (4x4 300 W958130) Diagram Polaris TRAIL BOSS 4X4 300
- Model code
- W958130
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7670060 Nut, speed10; |
7670060 |
US $1.49 |
||
|
2
|
2
5430973-193
Cover,h/l,camel tan
|
5430973-193 |
— | ||
|
3
|
3
7621460 Rivet(50)50; |
7621460 |
US $3.94 |
||
|
4
|
4
2631610-195
Cab asm,fr,
300-4X4; |
2631610-195 |
— | ||
|
5
|
5
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
6
|
6
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
7
|
7
7555859 Washer, flat(10)10; |
7555859 |
US $39.40 |
||
|
8
|
8
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
9
|
9
5211020-067
Brkt,rh mud flap
|
5211020-067 |
— | ||
|
9
|
9
5211131-067 Brkt, lh mud flap |
5211131-067 |
US $30.42 |
||
|
10
|
10
5850086
Mudflap,lh front
|
5850086 |
— | ||
|
10
|
10
5850091
Mudflap,rh,front
|
5850091 |
— | ||
|
11
|
11
7512282 Bolt, black(10)10; |
7512282 |
US $1.89 |
||
|
12
|
12
5410012 Plug,rubber-hole,,5dia10; |
5410012 |
US $10.36 |
||
| replacement | |||||
|
12
|
12
5411426
Bumper,rubber-hole,.5dia
10; |
5411426 |
— | ||
|
13
|
13
5431197-195
Cover,fueltank,e.b.grn.
|
5431197-195 |
— | ||
|
14
|
14
5430971-195
Cover,rh,sidepanel, grn.
|
5430971-195 |
— | ||
| replacements | |||||
|
14
|
14
5433579-195
Cover-side panel,rh,eb green
|
5433579-195 |
— | ||
|
14
|
14
5433579195RH
New Genuine Part
|
5433579195RH |
— | ||
|
14
|
14
5430970-195
Cover,lh,sidepanel,grn.
|
5430970-195 |
— | ||
| replacements | |||||
|
14
|
14
5433382195LH
New Genuine Part
|
5433382195LH |
— | ||
|
14
|
14
5433382-195
New Genuine Part
|
5433382-195 |
— | ||
|
15
|
15
7542103 Nut,flexloc10; |
7542103 |
US $9.19 |
||
|
16
|
16
7074819
Decal,caution,"fan"
|
7074819 |
— | ||
