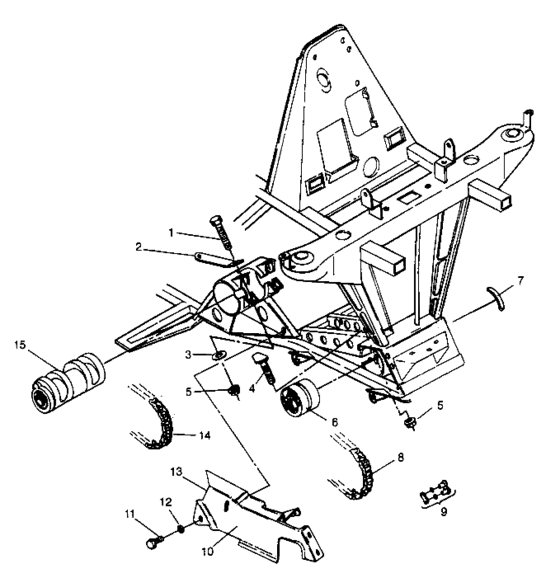

Front drive assembly (4x4 300 W958130) Diagram Polaris TRAIL BOSS 4X4 300
- Model code
- W958130
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512583 Bolt(10)10; |
7512583 |
US $1.89 |
||
|
2
|
2
5240579-067
Brkt,up.cover mt.
|
5240579-067 |
— | ||
|
3
|
3
7555883 Washer10; |
7555883 |
US $2.98 |
||
|
4
|
4
7512577
Bolt, flag
10; |
7512577 |
— | ||
|
5
|
5
7542503 Nut,flexlock,10; |
7542503 |
US $9.85 |
||
|
6
|
6
1380024
Tightener asm,front
See Pg.; |
1380024 |
— | ||
|
7
|
7
5431095
Spacer,f.eccentric
|
5431095 |
— | ||
| replacement | |||||
|
7
|
7
5811519
Spacer,f.eccentric
|
5811519 |
— | ||
|
8
|
8
3224041
Chain, drive
|
3224041 |
— | ||
| replacement | |||||
|
8
|
8
3221193-064 Chain-520 ord4,o-ring,64 pitch |
3221193-064 |
US $91.60 |
||
|
9
|
9
3225024 Connector link |
3225024 |
US $9.15 |
||
|
10
|
10
5431472
Guard,chain,front
|
5431472 |
— | ||
|
11
|
11
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
12
|
12
7555776
Washer
10; |
7555776 |
— | ||
| replacement | |||||
|
12
|
12
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
13
|
13
5810493
Tape,foil,pan#3
|
5810493 |
— | ||
|
14
|
14
3224044
Chain, drive
70P; |
3224044 |
— | ||
| replacement | |||||
|
14
|
14
3224056-070
Chain, 70p
70P; |
3224056-070 |
— | ||
|
15
|
15
1380038
Tightener asm, ctr.
See Pg.; |
1380038 |
— | ||
| replacement | |||||
|
15
|
15
1380129 Tgt,asm,ctr,short,w/o spkt,See Pg.; |
1380129 |
US $341.50 |
||
