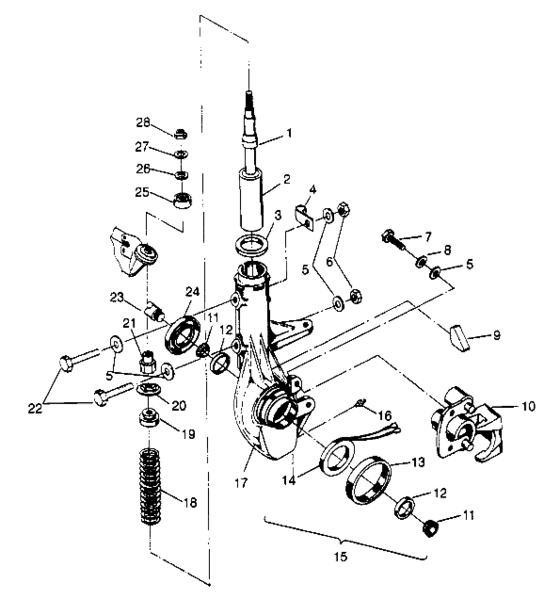

Front strut assembly (4x4 300 W958130) Diagram Polaris TRAIL BOSS 4X4 300
- Model code
- W958130
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5410429
Bumper, rubber
|
5410429 |
— | ||
|
2
|
2
7041449
Strut asm,front,25mm.
|
7041449 |
— | ||
| replacement | |||||
|
2
|
2
7041451
Strut asm,front,25mm,
|
7041451 |
— | ||
|
3
|
3
5211115 Washer(10)10; |
5211115 |
US $1.89 |
||
|
4
|
4
7080573 Clamp,rubber-coated,,56210; |
7080573 |
US $5.22 |
||
|
5
|
5
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
6
|
6
7542303 Nut flex-loc10; |
7542303 |
US $5.22 |
||
|
7
|
7
7512365 Screw, cap(10)10; |
7512365 |
US $1.49 |
||
|
8
|
8
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
9
|
9
5810439
Retainer,wire,strut cast
|
5810439 |
— | ||
|
10
|
10
1910075
Caliper asm,rh brake
|
1910075 |
— | ||
| replacement | |||||
|
10
|
10
1910174
New Genuine Part
|
1910174 |
— | ||
|
11
|
11
3554509 Bearing,tapered roller |
3554509 |
US $23.64 |
||
|
12
|
12
3554507 Brg,taper,roll cup |
3554507 |
US $33.50 |
||
|
13
|
13
5222193 Sleeve,strut hub seal |
5222193 |
US $60.22 |
||
|
14
|
14
4170005
Coil,magnetic,hvy.
|
4170005 |
— | ||
| replacement | |||||
|
14
|
14
2201313 Hub/coil(kit) |
2201313 |
US $166.93 |
||
|
15
|
15
2200611
Kit, hubstrut, lh
|
2200611 |
— | ||
|
15
|
15
2200612
Kit, hubstrut, rh
|
2200612 |
— | ||
|
16
|
16
7080306 Fitting,lube,w/ball ck,(10)10; |
7080306 |
US $91.90 |
||
|
17
|
17
5130703
Support,rh hub strut
No Longer Available; |
5130703 |
— | ||
|
17
|
17
5130702
Support,lh hub strut
No Longer Available; |
5130702 |
— | ||
|
18
|
18
7041238-195
Spring,coil,b.grn.
|
7041238-195 |
— | ||
|
19
|
19
5220602
Retainer,spring,top
|
5220602 |
— | ||
|
20
|
20
5430807
Pivot ball,bottom
|
5430807 |
— | ||
| replacement | |||||
|
20
|
20
5432871 Pivot,ball,bottom |
5432871 |
US $9.85 |
||
|
21
|
21
5130668 Spacer,threaded |
5130668 |
US $24.43 |
||
|
22
|
22
7515339 Bolt10; |
7515339 |
US $3.26 |
||
|
24
|
24
3610028 Seal, hub strut |
3610028 |
US $30.10 |
||
|
25
|
25
5430806
Pivot ball, top
|
5430806 |
— | ||
| replacement | |||||
|
25
|
25
5432872 Pivot,ball,top |
5432872 |
US $13.04 |
||
|
26
|
26
5810291 Spacer, rubber (10) |
5810291 |
US $3.75 |
||
|
27
|
27
7555749 Washer(10)10; |
7555749 |
US $1.89 |
||
|
28
|
28
7542507 Nut,flex loc(10)10; |
7542507 |
US $4.43 |
||
