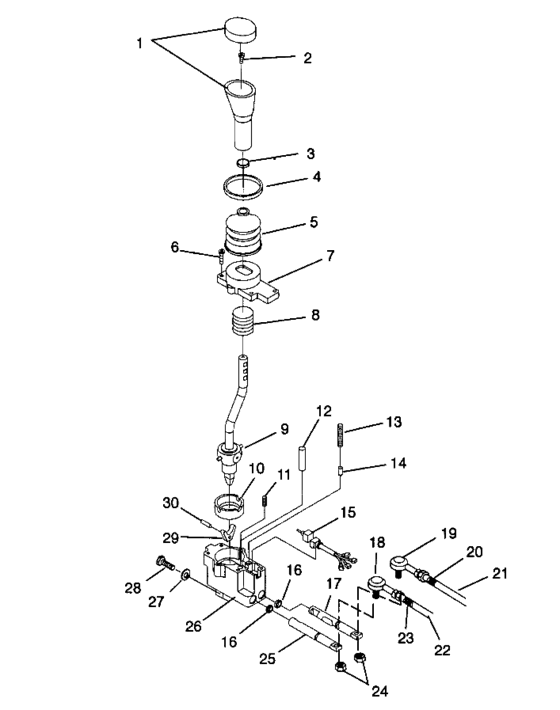

Gear selector (4x4 300 W958130) Diagram Polaris TRAIL BOSS 4X4 300
- Model code
- W958130
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3233195
Asm., knob, hi/lo/rev.
|
3233195 |
— | ||
| replacement | |||||
|
1
|
1
3233195-070 Gear select knob,hlr,black,asm, |
3233195-070 |
US $28.58 |
||
|
2
|
2
3233079
Screw
|
3233079 |
— | ||
|
3
|
3
3233131 Strap, wire |
3233131 |
US $9.15 |
||
|
4
|
4
3233132 Clamp |
3233132 |
US $7.68 |
||
|
5
|
5
3233133
Boot,gear selector
|
3233133 |
— | ||
| replacement | |||||
|
5
|
5
3233368 Boot,gear selector |
3233368 |
US $17.73 |
||
|
6
|
6
3233085
Screw
|
3233085 |
— | ||
| replacement | |||||
|
6
|
6
3233498 Screw,magnigard coated |
3233498 |
US $7.07 |
||
|
7
|
7
3233081 Cover,gear selector |
3233081 |
US $107.36 |
||
|
8
|
8
3233158 Spring,holding |
3233158 |
US $4.94 |
||
|
9
|
9
3233161
Handle subassy.
|
3233161 |
— | ||
|
10
|
10
3233063 Cup,bearing |
3233063 |
US $15.75 |
||
|
11
|
11
3233083
Spring,centering
|
3233083 |
— | ||
|
12
|
12
3233062 Pin, stop |
3233062 |
US $13.20 |
||
|
13
|
13
3233069 Spring,detent |
3233069 |
US $7.09 |
||
|
14
|
14
3233060 Bullet,detent |
3233060 |
US $79.68 |
||
|
15
|
15
3233138
Switch,gear selector
|
3233138 |
— | ||
| replacement | |||||
|
15
|
15
3233371 Switch |
3233371 |
US $221.55 |
||
|
16
|
16
3233076 O-ring |
3233076 |
US $8.17 |
||
|
17
|
17
3233088
Slide,high/rev.
|
3233088 |
— | ||
|
18
|
18
7060142
Rod end, rh
|
7060142 |
— | ||
| replacement | |||||
|
18
|
18
7061014 Rod end,rh,6mm. |
7061014 |
US $89.79 |
||
|
19
|
19
7060141
Rod end, lh
|
7060141 |
— | ||
| replacement | |||||
|
19
|
19
7061013 Rod end,lh,6mm. |
7061013 |
US $89.79 |
||
|
20
|
20
7546702 Nut(10)10; |
7546702 |
US $1.49 |
||
|
21
|
21
5020748 Rod,shift-link,high |
5020748 |
US $47.67 |
||
|
22
|
22
5020749
Rod,shift-link,low
|
5020749 |
— | ||
|
23
|
23
7546701 Nut(10)10; |
7546701 |
US $1.49 |
||
|
24
|
24
7546707
Nut
10; |
7546707 |
— | ||
| replacement | |||||
|
24
|
24
7546703
Nut,nylok
10; |
7546703 |
— | ||
|
25
|
25
3233089
Slide,low
|
3233089 |
— | ||
|
26
|
26
3233082 Body,gear selector |
3233082 |
US $127.05 |
||
|
27
|
27
7552605 Washer10; |
7552605 |
US $3.92 |
||
|
28
|
28
7512269 Bolt10; |
7512269 |
US $1.89 |
||
|
29
|
29
3233084
Interlock,butterfly
|
3233084 |
— | ||
|
30
|
30
3233070
Pin,interlock
|
3233070 |
— | ||
