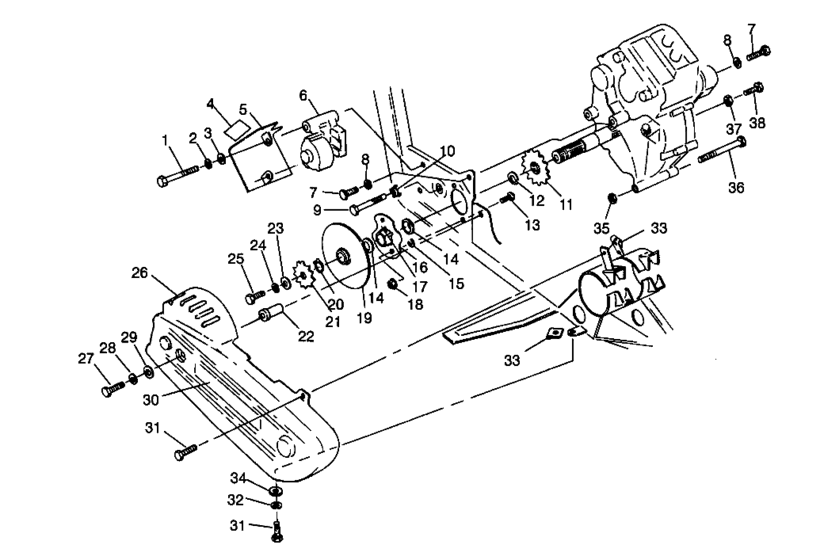

Gearcase/brake and chain cover mounting (4x4 300 W958130) Diagram Polaris TRAIL BOSS 4X4 300
- Model code
- W958130
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7515345 Bolt10; |
7515345 |
US $3.94 |
||
|
2
|
2
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
3
|
3
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
4
|
4
7072790
Decal,brake shield
CPSC; |
7072790 |
— | ||
| replacement | |||||
|
4
|
4
7075339
Decal,brake shield
CPSC; |
7075339 |
— | ||
|
5
|
5
5240149-067
Shield,r,caliper,blk,
|
5240149-067 |
— | ||
|
6
|
6
1910130
Caliper asm,r,(scand)
SCAND; |
1910130 |
— | ||
|
7
|
7
7515522 Bolt10; |
7515522 |
US $3.26 |
||
|
8
|
8
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
13
|
13
7515484 Bolt,carriage10; |
7515484 |
US $3.75 |
||
|
14
|
14
3610026 Seal, brake |
3610026 |
US $7.89 |
||
|
15
|
15
5210764 Spacer-,02010; |
5210764 |
US $6.14 |
||
|
15
|
15
5211065 Shim,,010 |
5211065 |
US $7.09 |
||
|
15
|
15
5211517 Shim,(,030).030; |
5211517 |
US $8.84 |
||
|
16
|
16
1590237 Brg,asm,o/p shaft |
1590237 |
US $73.87 |
||
|
17
|
17
7080306 Fitting,lube,w/ball ck,(10)10; |
7080306 |
US $91.90 |
||
|
18
|
18
7542449 Nut,flange lock10; |
7542449 |
US $2.98 |
||
|
19
|
19
1910177
Disc asm,brake
See Pg. A36, Ref. 52; |
1910177 |
— | ||
|
22
|
22
5333244
Spacer, chain guard
|
5333244 |
— | ||
|
26
|
26
5431717 Guard,chain,ctr, |
5431717 |
US $178.73 |
||
|
27
|
27
7515346 Screw10; |
7515346 |
US $3.75 |
||
|
28
|
28
7552606 Washer10; |
7552606 |
US $2.45 |
||
|
29
|
29
7555770
Washer
10; |
7555770 |
— | ||
| replacement | |||||
|
29
|
29
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
30
|
30
7074226
Decal,demand 4 drive
|
7074226 |
— | ||
|
31
|
31
7512269 Bolt10; |
7512269 |
US $1.89 |
||
|
32
|
32
7552605 Washer10; |
7552605 |
US $3.92 |
||
|
33
|
33
7670060 Nut, speed10; |
7670060 |
US $1.49 |
||
|
34
|
34
7555843
Washer, flat
10; |
7555843 |
— | ||
| replacement | |||||
|
34
|
34
7558302 Washer,wrought10; |
7558302 |
US $2.45 |
||
|
35
|
35
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
36
|
36
7515472 Bolt10; |
7515472 |
US $6.56 |
||
|
37
|
37
7542404 Nut10; |
7542404 |
US $5.25 |
||
|
38
|
38
7515485 Bolt10; |
7515485 |
US $3.75 |
||
