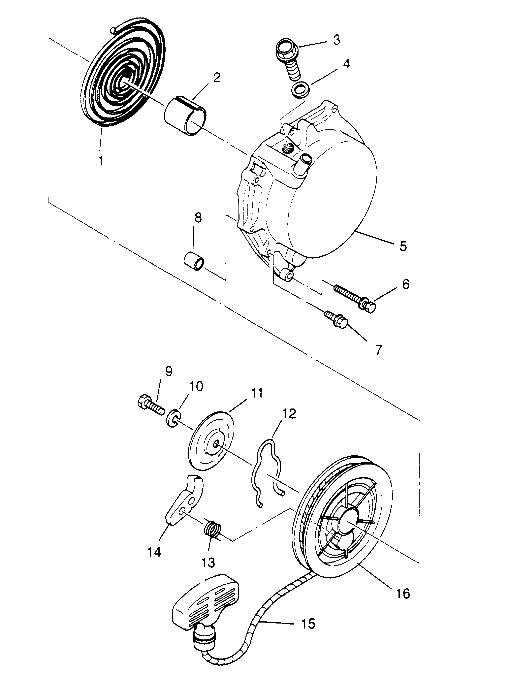

Recoil starter (4x4 300 W958130) Diagram Polaris TRAIL BOSS 4X4 300
- Model code
- W958130
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3083185 Spring, spiral * |
3083185 |
US $40.58 |
||
|
2
|
2
3084750 Bushing |
3084750 |
US $6.20 |
||
|
3
|
3
3083453 Plug |
3083453 |
US $1.66 |
||
| replacement | |||||
|
3
|
3
3086749
Plug
|
3086749 |
— | ||
|
4
|
4
3082956 Gasket (10) |
3082956 |
US $34.10 |
||
|
5
|
5
3085082
Starter asm,recoil
Incl. 1, 2, 5, 9-16; |
3085082 |
— | ||
| replacement | |||||
|
5
|
5
3085897
Asm,,recoil,starter
Incl. 1, 2, 5, 9-16; |
3085897 |
— | ||
|
5
|
5
3085054
Case,starter
|
3085054 |
— | ||
| replacement | |||||
|
5
|
5
3085897
Asm,,recoil,starter
|
3085897 |
— | ||
|
6
|
6
3084782 Bolt&washer |
3084782 |
US $5.43 |
||
|
7
|
7
3084177
Bolt, flange
|
3084177 |
— | ||
| replacement | |||||
|
7
|
7
3086751 Bolt-flange |
3086751 |
US $3.26 |
||
|
8
|
8
3083669 Bushing, starter |
3083669 |
US $20.28 |
||
|
9
|
9
3084751
Bolt
|
3084751 |
— | ||
| replacement | |||||
|
9
|
9
3085266
Bolt&washer asm,
|
3085266 |
— | ||
|
10
|
10
3084752
Washer, spring
|
3084752 |
— | ||
|
11
|
11
3084744 Plate, friction |
3084744 |
US $27.39 |
||
|
12
|
12
3083379 Spring, friction |
3083379 |
US $19.69 |
||
|
13
|
13
3083463 Spring, return |
3083463 |
US $5.25 |
||
|
14
|
14
3083378 Ratchet |
3083378 |
US $16.24 |
||
|
15
|
15
3085083 Rope asm * |
3085083 |
US $54.02 |
||
|
16
|
16
3084822 Asm,,reel * |
3084822 |
US $91.60 |
||
