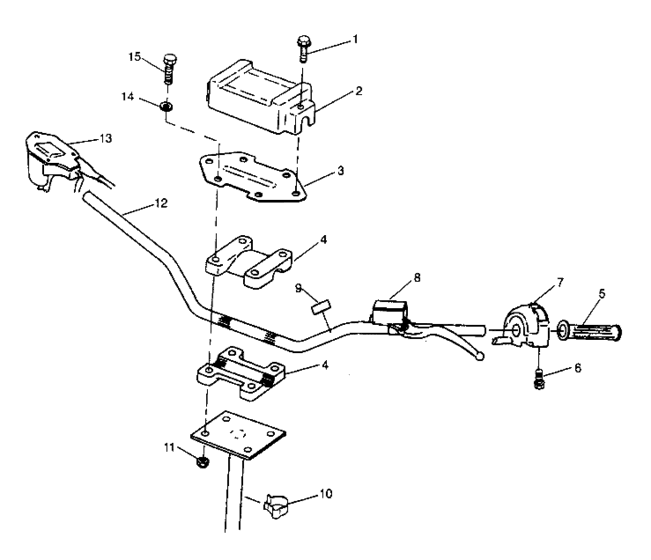

Steering (HANDLEBAR 4x4 300 W958130) Diagram Polaris TRAIL BOSS 4X4 300
- Model code
- W958130
- Year
- 1995
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7512286
Bolt
10; |
7512286 |
— | ||
| replacement | |||||
|
1
|
1
7515197 Screw(10) *10; |
7515197 |
US $0.79 |
||
|
2
|
2
5810379 Pad, handlebar |
5810379 |
US $35.67 |
||
|
3
|
3
5220946
Mount,hdlbr. pad
|
5220946 |
— | ||
| replacement | |||||
|
3
|
3
5245051 Mount-handlebar pad |
5245051 |
US $7.09 |
||
|
4
|
4
5630187
Block,handlebar
|
5630187 |
— | ||
| replacement | |||||
|
4
|
4
5630187-067 Block,handlebar,blk |
5630187-067 |
US $31.90 |
||
|
5
|
5
5431030
Grip, handlebar
|
5431030 |
— | ||
|
6
|
6
2010055
Screw
|
2010055 |
— | ||
|
7
|
7
4110157
Switch,lh,h'bar(atv)
ATV; |
4110157 |
— | ||
|
9
|
9
7072827
Decal,o`ride sw.
4X4; |
7072827 |
— | ||
| replacement | |||||
|
9
|
9
7076273
Decal,o'ride sw,(awd)
4X4; |
7076273 |
— | ||
|
10
|
10
7080278 Clip10; |
7080278 |
US $3.26 |
||
|
11
|
11
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
12
|
12
5224316-067
Tube,hdlbr,black
|
5224316-067 |
— | ||
| replacement | |||||
|
12
|
12
5242988-067 Tube,handlebar,blk |
5242988-067 |
US $68.93 |
||
|
14
|
14
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
15
|
15
7512265 Bolt10; |
7512265 |
US $3.26 |
||
