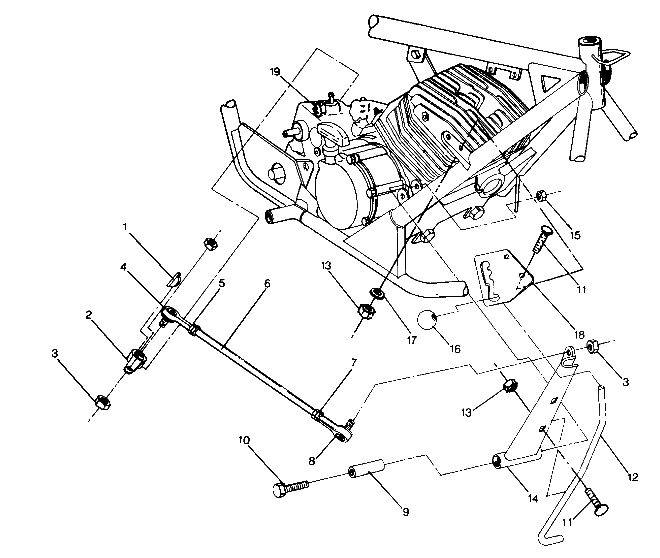

Shift linkage assembly Diagram Polaris TRAIL BOSS 4X4
- Model code
- W878027
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7721113 Key, hi-pro |
7721113 |
US $1.49 |
||
|
2
|
2
1341037
Lever, shift
|
1341037 |
— | ||
| replacement | |||||
|
2
|
2
5610107
Lever, shift
|
5610107 |
— | ||
|
3
|
3
7546703
Nut,nylok
|
7546703 |
— | ||
|
4
|
4
7060141
Rod end, lh
|
7060141 |
— | ||
| replacement | |||||
|
4
|
4
7061013 Rod end,lh,6mm. |
7061013 |
US $89.79 |
||
|
5
|
5
7546702 Nut(10)10; |
7546702 |
US $1.49 |
||
|
6
|
6
5332885
Rod,shift linkage
|
5332885 |
— | ||
|
7
|
7
7546701 Nut(10)10; |
7546701 |
US $1.49 |
||
|
8
|
8
7060142
Rod end, rh
|
7060142 |
— | ||
| replacement | |||||
|
8
|
8
7061014 Rod end,rh,6mm. |
7061014 |
US $89.79 |
||
|
9
|
9
5020495
Shaft, pivot
|
5020495 |
— | ||
|
10
|
10
7512470
Screw
10; |
7512470 |
— | ||
|
11
|
11
7515333 Bolt10; |
7515333 |
US $1.89 |
||
|
12
|
12
5224328
Rod, shift
|
5224328 |
— | ||
| replacement | |||||
|
12
|
12
1341040
Rod, shift
|
1341040 |
— | ||
|
13
|
13
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
14
|
14
1341038
Rod, shift
|
1341038 |
— | ||
| replacement | |||||
|
14
|
14
1341040
Rod, shift
|
1341040 |
— | ||
|
15
|
15
7542402 Nut,flexloc10; |
7542402 |
US $5.22 |
||
|
16
|
16
5410476
Knob, shift
|
5410476 |
— | ||
|
17
|
17
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
18
|
18
5220815
Plate, shift
|
5220815 |
— | ||
|
19
|
19
4060079
Regulator,speed limit,
|
4060079 |
— | ||
