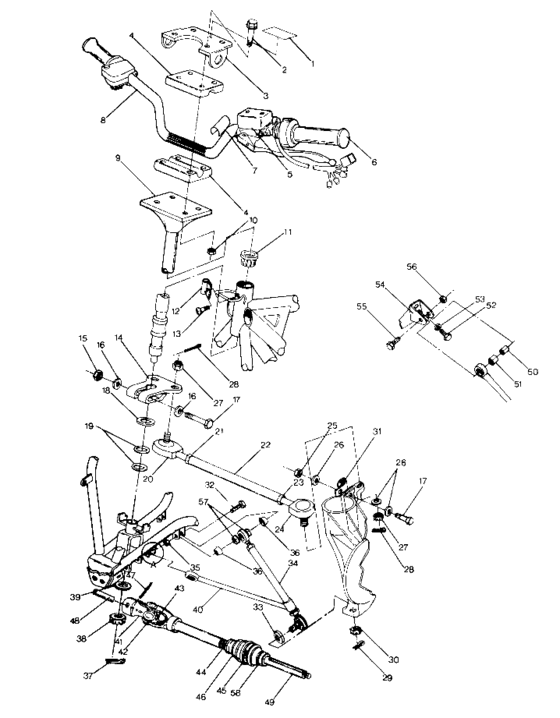

Steering assembly Diagram Polaris TRAIL BOSS 4X4
- Model code
- W878027
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7072376
Decal,oil/park
No Longer Available; |
7072376 |
— | ||
|
2
|
2
7512272
Bolt
10; |
7512272 |
— | ||
|
3
|
3
5220484
Bracket,h/l mt.
|
5220484 |
— | ||
|
4
|
4
5630187
Block,handlebar
|
5630187 |
— | ||
| replacement | |||||
|
4
|
4
5630187-067 Block,handlebar,blk |
5630187-067 |
US $31.90 |
||
|
5
|
5
1930622
Cylinder, master
|
1930622 |
— | ||
| replacement | |||||
|
5
|
5
2050073 Master cylinder |
2050073 |
US $306.22 |
||
|
6
|
6
5410416
Grip, handle bar
|
5410416 |
— | ||
| replacement | |||||
|
6
|
6
5431030
Grip, handlebar
|
5431030 |
— | ||
|
7
|
7
7072390
Decal,o`ride switch
|
7072390 |
— | ||
| replacement | |||||
|
7
|
7
7076274
Decal,o'ride sw,2wd
|
7076274 |
— | ||
|
8
|
8
5224316
Tube,hdlbar.
4WHL; |
5224316 |
— | ||
| replacement | |||||
|
8
|
8
5242988-067 Tube,handlebar,blk4WHL; |
5242988-067 |
US $68.93 |
||
|
9
|
9
1843020
Post, steering
|
1843020 |
— | ||
| replacement | |||||
|
9
|
9
1843020-067 Post,steering,blk. |
1843020-067 |
US $163.21 |
||
|
10
|
10
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
11
|
11
5430856
Bushing,steering
|
5430856 |
— | ||
|
12
|
12
7080325
Clamp, loop
|
7080325 |
— | ||
|
13
|
13
7510503
Screw
|
7510503 |
— | ||
|
14
|
14
5220546
Frog,steering
|
5220546 |
— | ||
|
15
|
15
7542411 Nut,flexloc(10)10; |
7542411 |
US $5.25 |
||
|
16
|
16
7555720
Washer
10; |
7555720 |
— | ||
| replacement | |||||
|
16
|
16
7555806 Washer,flat(10)10; |
7555806 |
US $13.10 |
||
|
17
|
17
7512410
Bolt
10; |
7512410 |
— | ||
| replacement | |||||
|
17
|
17
7515540 Bolt10; |
7515540 |
US $3.26 |
||
|
18
|
18
7555726 Washer10; |
7555726 |
US $6.56 |
||
|
19
|
19
5410483
O-ring
|
5410483 |
— | ||
|
20
|
20
7060139
Rod end, lh
|
7060139 |
— | ||
|
21
|
21
7546902 Nut, lh, 10 mm,10; |
7546902 |
US $3.26 |
||
|
22
|
22
5332888
Rod, tie
|
5332888 |
— | ||
|
23
|
23
7546901 Nut, rh, 10 mm,10; |
7546901 |
US $2.98 |
||
|
24
|
24
7060140
Rod end, rh
No Longer Available; |
7060140 |
— | ||
|
25
|
25
7542403 Nut lock(10)10; |
7542403 |
US $3.75 |
||
|
26
|
26
7555803
Washer
10; |
7555803 |
— | ||
| replacement | |||||
|
26
|
26
7555806 Washer,flat(10)10; |
7555806 |
US $13.10 |
||
|
27
|
27
7546904 Nut, castle(10)10; |
7546904 |
US $3.26 |
||
|
28
|
28
7661203 Pin,cotter(10)10; |
7661203 |
US $26.30 |
||
|
29
|
29
7661402 Pin, cotter |
7661402 |
US $2.45 |
||
|
30
|
30
7542720
Nut,hex,slotted
No Longer Available; 10; |
7542720 |
— | ||
|
31
|
31
7080347
Clamp
10; |
7080347 |
— | ||
| replacement | |||||
|
31
|
31
7080573 Clamp,rubber-coated,,56210; |
7080573 |
US $5.22 |
||
|
32
|
32
7512668
Bolt
No Longer Available; 10; |
7512668 |
— | ||
|
33
|
33
7555768
Washer,hard
|
7555768 |
— | ||
|
34
|
34
1843013
Strut asm,trlg.
No Longer Available; |
1843013 |
— | ||
|
35
|
35
7542703 Nut flexoc,10; |
7542703 |
US $13.09 |
||
|
36
|
36
5410477
Boot
|
5410477 |
— | ||
|
37
|
37
7661207
Pin, cotter
|
7661207 |
— | ||
|
38
|
38
7542717
Nut, lock
10; |
7542717 |
— | ||
|
39
|
39
7555721 Washer(10)10; |
7555721 |
US $5.25 |
||
|
40
|
40
1580023
Strut,lh support
|
1580023 |
— | ||
| replacement | |||||
|
40
|
40
1580023-067
Strut,lh support,blk,
|
1580023-067 |
— | ||
|
40
|
40
1580024
Strut, rh support
|
1580024 |
— | ||
| replacement | |||||
|
40
|
40
1580024-067
Strut,rh,support,blk,
|
1580024-067 |
— | ||
|
41
|
41
3260101
Yoke
|
3260101 |
— | ||
|
42
|
42
3260104 Kit,cross&bearing |
3260104 |
US $35.46 |
||
|
43
|
43
3260102
Desc not_available
|
3260102 |
— | ||
|
44
|
44
3260105
Clamp, small
|
3260105 |
— | ||
| replacement | |||||
|
44
|
44
7080346 Cable, tie |
7080346 |
US $3.75 |
||
|
45
|
45
3260107
Clamp, large
|
3260107 |
— | ||
|
46
|
46
3260106
Boot
|
3260106 |
— | ||
| replacement | |||||
|
46
|
46
3260108
Kit, boot
|
3260108 |
— | ||
|
47
|
47
7080345
Wire, safety
|
7080345 |
— | ||
|
48
|
48
7661913 Pin,spring(10)10; |
7661913 |
US $39.40 |
||
|
49
|
49
1380009
U-joint asm.w/sleave
|
1380009 |
— | ||
| replacement | |||||
|
49
|
49
2200307
New Genuine Part
|
2200307 |
— | ||
|
50
|
50
5020483
Shaft,pivot,tightener
No Longer Available; |
5020483 |
— | ||
|
51
|
51
5410382
Pivot-trailing arm
|
5410382 |
— | ||
|
52
|
52
7515483
Bolt
10; |
7515483 |
— | ||
|
53
|
53
7553001
Washer springlock
10; |
7553001 |
— | ||
| replacement | |||||
|
53
|
53
7552603 Washer,spring lock(10)10; |
7552603 |
US $26.30 |
||
|
54
|
54
5220855
Brkt,spare link
|
5220855 |
— | ||
|
55
|
55
7515334
Bolt
10; |
7515334 |
— | ||
|
56
|
56
7542324 Nut,nylok(10)10; |
7542324 |
US $26.30 |
||
|
57
|
57
5332889
Spacer
|
5332889 |
— | ||
|
58
|
58
5220883
Collar
|
5220883 |
— | ||
