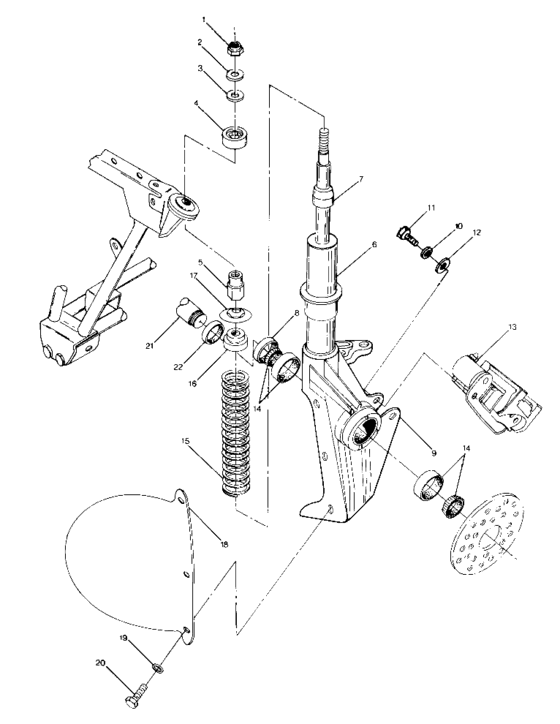

Strut assembly Diagram Polaris TRAIL BOSS 4X4
- Model code
- W878027
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7542507 Nut,flex loc(10)10; |
7542507 |
US $4.43 |
||
|
2
|
2
7555749 Washer(10)10; |
7555749 |
US $1.89 |
||
|
3
|
3
5810291 Spacer, rubber (10) |
5810291 |
US $3.75 |
||
|
4
|
4
5430806
Pivot ball, top
|
5430806 |
— | ||
| replacement | |||||
|
4
|
4
5432872 Pivot,ball,top |
5432872 |
US $13.04 |
||
|
5
|
5
5130631
Spacer, threaded
|
5130631 |
— | ||
|
6
|
6
1843017
Tube, strut
|
1843017 |
— | ||
| replacement | |||||
|
6
|
6
1843029
Tube,strut,weld,
|
1843029 |
— | ||
|
7
|
7
5410429
Bumper, rubber
|
5410429 |
— | ||
|
8
|
8
3610018
Seal,strut,
4WHL.; |
3610018 |
— | ||
|
9
|
9
5130622
Strut,hub,lh
|
5130622 |
— | ||
| replacement | |||||
|
9
|
9
1843015
New Genuine Part
|
1843015 |
— | ||
|
9
|
9
5130623
Strut,hub,rh
|
5130623 |
— | ||
| replacement | |||||
|
9
|
9
1843016
New Genuine Part
|
1843016 |
— | ||
|
10
|
10
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
11
|
11
7516714 Screw,h,h,capNo Longer Available; 10; |
7516714 |
US $3.26 |
||
|
12
|
12
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
|
13
|
13
1910030
Caliper,front,rh
No Longer Available; |
1910030 |
— | ||
|
13
|
13
1910031
Caliper,front,lh
No Longer Available; |
1910031 |
— | ||
|
14
|
14
3554505
Bearing
|
3554505 |
— | ||
|
15
|
15
7041189
Spring,strut,red
|
7041189 |
— | ||
| replacement | |||||
|
15
|
15
7041161-067
Spring, strut
|
7041161-067 |
— | ||
|
16
|
16
5220602
Retainer,spring,top
|
5220602 |
— | ||
|
17
|
17
5430807
Pivot ball,bottom
|
5430807 |
— | ||
| replacement | |||||
|
17
|
17
5432871 Pivot,ball,bottom |
5432871 |
US $9.85 |
||
|
18
|
18
5430915
Shield, boot,lh
|
5430915 |
— | ||
|
18
|
18
5430916
Shield, boot,rh
|
5430916 |
— | ||
|
19
|
19
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
20
|
20
7512208 Screw10; |
7512208 |
US $3.26 |
||
|
21
|
21
1380009
U-joint asm.w/sleave
|
1380009 |
— | ||
| replacement | |||||
|
21
|
21
2200307
New Genuine Part
|
2200307 |
— | ||
|
22
|
22
5020492
Seal,sleeve
|
5020492 |
— | ||
| replacement | |||||
|
22
|
22
5220883
Collar
|
5220883 |
— | ||
