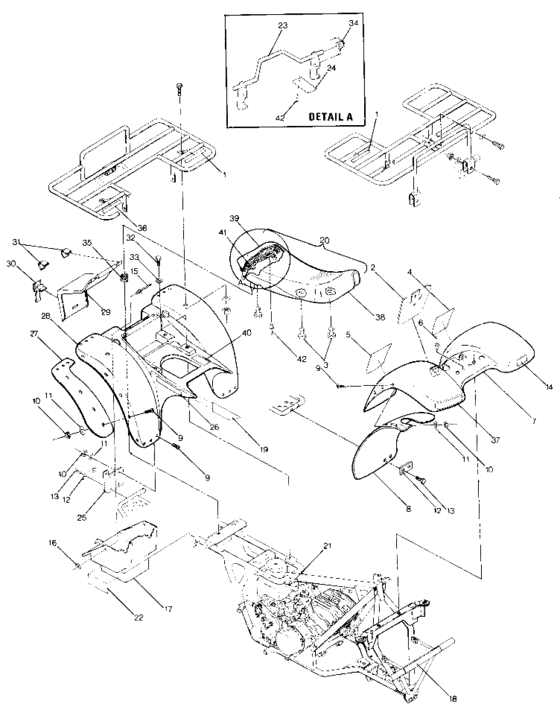

Body assembly Diagram Polaris TRAIL BOSS 4X4
- Model code
- W878127
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
7072381
Decal,wrn.hvy.ld.
|
7072381 |
— | ||
| replacement | |||||
|
1
|
1
7072605
Decal,wrn.hvy load
|
7072605 |
— | ||
|
2
|
2
5850070
Flap,splashguard
|
5850070 |
— | ||
|
3
|
3
5410414 Bumper, rubber (10) |
5410414 |
US $1.89 |
||
|
4
|
4
7072384
Decal,wrn.,fr.
French; |
7072384 |
— | ||
| replacement | |||||
|
4
|
4
7072435
New Genuine Part
French; |
7072435 |
— | ||
|
5
|
5
7072385
Decal,wrn.,eng.
English; |
7072385 |
— | ||
| replacement | |||||
|
5
|
5
7072436
New Genuine Part
English; |
7072436 |
— | ||
|
6
|
6
7621457 Rivet(50)50; |
7621457 |
US $1.89 |
||
|
7
|
7
5430897
Cab, front
|
5430897 |
— | ||
| replacement | |||||
|
7
|
7
5431248-119
New Genuine Part
|
5431248-119 |
— | ||
|
8
|
8
5850071
Mudflap,rh,low rear
|
5850071 |
— | ||
|
8
|
8
5850072
Mudflap,front,rh
|
5850072 |
— | ||
|
9
|
9
7512282 Bolt, black(10)10; |
7512282 |
US $1.89 |
||
|
10
|
10
7542122 Nut-nylok(10)10; |
7542122 |
US $26.30 |
||
|
11
|
11
7558301 Washer, flat(10) *10; |
7558301 |
US $0.79 |
||
|
12
|
12
5211020
Bracket,mud flap
|
5211020 |
— | ||
| replacement | |||||
|
12
|
12
5211020-067
Brkt,rh mud flap
|
5211020-067 |
— | ||
|
13
|
13
7512232 Bolt(10)10; |
7512232 |
US $26.30 |
||
|
14
|
14
7073025
Label, `u.s.a.`
No Longer Available; |
7073025 |
— | ||
|
15
|
15
7621462 Rivet(50)50; |
7621462 |
US $1.89 |
||
|
16
|
16
7558212 Washer,13/64x1/2x18ga,fl-y (10) |
7558212 |
US $0.79 |
||
|
17
|
17
5430882
Box,tool comp,
|
5430882 |
— | ||
|
18
|
18
7072423
Decal,front susp.
No Longer Available; |
7072423 |
— | ||
|
19
|
19
5810349
Tape, foil
|
5810349 |
— | ||
|
20
|
20
2681288
Seat asm.
4WHL.; |
2681288 |
— | ||
| replacement | |||||
|
20
|
20
2681240
Seat asm,
4WHL.; |
2681240 |
— | ||
|
21
|
21
7080272 Strap, blk |
7080272 |
US $3.64 |
||
|
22
|
22
5810310
Tape, foil
|
5810310 |
— | ||
|
23
|
23
1011558
Latch,seat
|
1011558 |
— | ||
|
24
|
24
5211033 Bracket,lever retainer |
5211033 |
US $23.61 |
||
|
25
|
25
5850062
Flap,mud,lh rear
|
5850062 |
— | ||
|
25
|
25
5850066
Flap,mud,rh rear
|
5850066 |
— | ||
|
26
|
26
7072413
Decal,"t.b.4x4"
No Longer Available; |
7072413 |
— | ||
|
27
|
27
5850060
Flap,mud,lh rear
|
5850060 |
— | ||
|
27
|
27
5850061
Flap,mud,rh rear
|
5850061 |
— | ||
|
28
|
28
5430896
Cab, rear
|
5430896 |
— | ||
| replacement | |||||
|
28
|
28
5430991-119
Cab,rear,fiero red
|
5430991-119 |
— | ||
|
29
|
29
5430899
Lid, tool box
|
5430899 |
— | ||
|
30
|
30
5410425 Strap,tool compartment |
5410425 |
US $9.15 |
||
|
31
|
31
7670050 Clip, lid hinge10; |
7670050 |
US $1.89 |
||
|
32
|
32
7512111
Bolt
10; |
7512111 |
— | ||
| replacement | |||||
|
32
|
32
7512240 Bolt10; |
7512240 |
US $2.45 |
||
|
33
|
33
7552801 Washer, spring lock(10)10; |
7552801 |
US $2.45 |
||
|
34
|
34
7041158 Spring, latch |
7041158 |
US $18.45 |
||
|
35
|
35
5410413
Grommet
|
5410413 |
— | ||
|
36
|
36
7072382
Decal,rack,rear
|
7072382 |
— | ||
| replacement | |||||
|
36
|
36
7072604
Decal,rear rack
|
7072604 |
— | ||
|
37
|
37
7072383
Decal,`polaris`,silver
No Longer Available; |
7072383 |
— | ||
|
38
|
38
2681289
Cover, seat
4WHL.; |
2681289 |
— | ||
| replacement | |||||
|
38
|
38
2681241
Cover,seat,
4WHL.; |
2681241 |
— | ||
|
39
|
39
5430803
Foam bun, seat
No Longer Available; |
5430803 |
— | ||
|
40
|
40
7072403
Decal,filter element
No Longer Available; |
7072403 |
— | ||
|
41
|
41
5430773
Base, seat
|
5430773 |
— | ||
| replacement | |||||
|
41
|
41
2681240
Seat asm,
|
2681240 |
— | ||
|
42
|
42
7621403 Blind rivet(50)50; |
7621403 |
US $0.79 |
||
