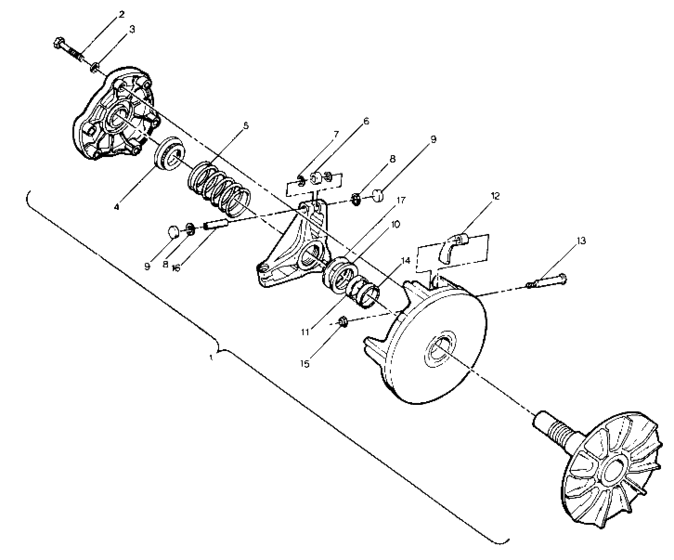

Drive clutch assembly Diagram Polaris TRAIL BOSS 4X4
- Model code
- W878127
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1321476
Clutch,drive,atv
|
1321476 |
— | ||
| replacement | |||||
|
1
|
1
1321632
Asm., drive clutch, atv-06
|
1321632 |
— | ||
|
2
|
2
7512265 Bolt10; |
7512265 |
US $3.26 |
||
|
3
|
3
7552801 Washer, spring lock(10)10; |
7552801 |
US $2.45 |
||
|
4
|
4
5010189
Bushing,clutch cover
|
5010189 |
— | ||
|
5
|
5
7041157 Spring,clutch |
7041157 |
US $35.67 |
||
|
6
|
6
1321457 Roller/bushing asm,(3) **6; |
1321457 |
US $26.60 |
||
|
7
|
7
5430702
Washer
|
5430702 |
— | ||
| replacement | |||||
|
7
|
7
5430945 Washer(10) |
5430945 |
US $65.60 |
||
|
8
|
8
5410374 Seal, o ring,10; |
5410374 |
US $2.28 |
||
|
9
|
9
5430768 Button, guide(10)10; |
5430768 |
US $6.11 |
||
|
10
|
10
5210754 Spacer,,05010; |
5210754 |
US $2.77 |
||
|
11
|
11
5010218 Insert,moveable |
5010218 |
US $19.30 |
||
|
12
|
12
5630279 Wt,,clutch,16(3)6; |
5630279 |
US $17.24 |
||
|
13
|
13
7512266 Bolt,shoulder(10)10; |
7512266 |
US $3.94 |
||
|
14
|
14
5430748
Bearing, sleeve
|
5430748 |
— | ||
|
15
|
15
7541906 Nut flexloc(10)10; |
7541906 |
US $52.50 |
||
|
16
|
16
2870654
Tool,clutch offset
No Longer Available; |
2870654 |
— | ||
|
16
|
16
5020436
Pin, spider
|
5020436 |
— | ||
| replacement | |||||
|
16
|
16
5020795 Pin, spider |
5020795 |
US $14.09 |
||
|
17
|
17
5210752 Spacer,,020(10)10; |
5210752 |
US $0.49 |
||
