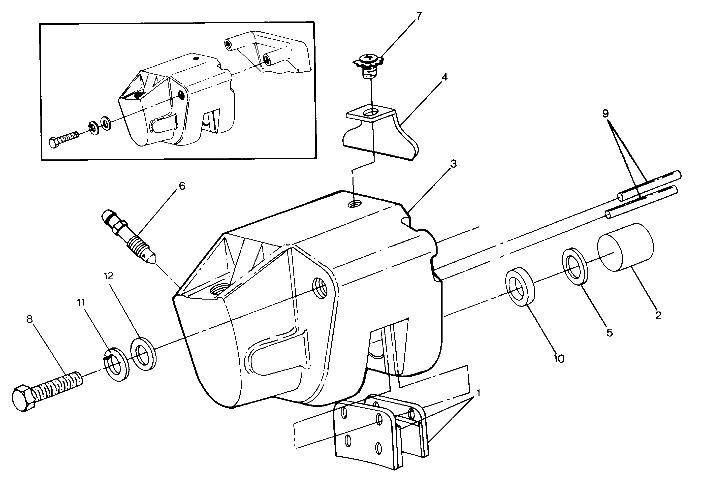

Rear brake caliper assembly Diagram Polaris TRAIL BOSS 4X4
- Model code
- W878127
- Year
- 1987
- Sales region
- General
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1910032
Pad asm.
|
1910032 |
— | ||
| replacement | |||||
|
1
|
1
2200464 Kit,rear,brakepad,med,duty |
2200464 |
US $39.39 |
||
|
2
|
2
5020497
Piston,brake
|
5020497 |
— | ||
| replacement | |||||
|
2
|
2
5020510
Piston
|
5020510 |
— | ||
|
3
|
3
5130650
Caliper,brake
|
5130650 |
— | ||
| replacement | |||||
|
3
|
3
1930638
New Genuine Part
|
1930638 |
— | ||
|
4
|
4
5220835
Bracket
|
5220835 |
— | ||
|
5
|
5
5410481
Ring, square
|
5410481 |
— | ||
| replacement | |||||
|
5
|
5
5410519
Ring, square
|
5410519 |
— | ||
|
6
|
6
7080352 Screw,bleeder (10) |
7080352 |
US $65.60 |
||
|
7
|
7
7511953
Screw
10; |
7511953 |
— | ||
| replacement | |||||
|
7
|
7
7512048 Screw10; |
7512048 |
US $2.45 |
||
|
8
|
8
7512396
Bolt
|
7512396 |
— | ||
|
9
|
9
7661820 Pin, dowel10; |
7661820 |
US $13.77 |
||
|
10
|
10
5410482
Ring, square
|
5410482 |
— | ||
| replacement | |||||
|
10
|
10
5410499
Ring, square
|
5410499 |
— | ||
|
11
|
11
7552901 Washer,spring lock(10)10; |
7552901 |
US $39.40 |
||
|
12
|
12
7558402 Washer,flat(10)10; |
7558402 |
US $18.70 |
||
